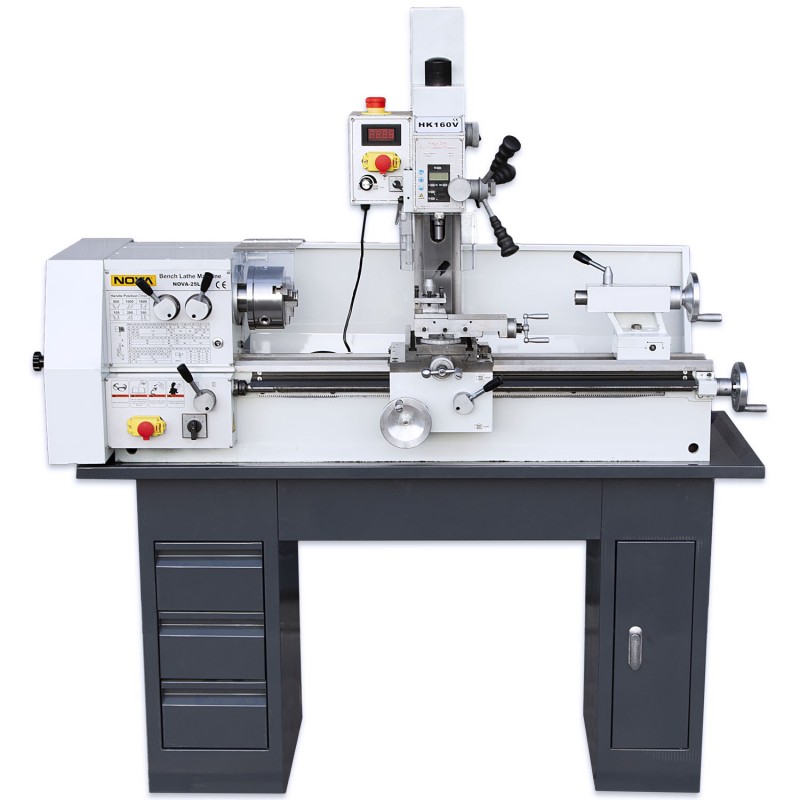

NOVA 25L/3 Metal Lathe 380V
NOVA 25L/3 is a reliable combination machine. Excellent two in one kit that is suitable for small workshops and enthusiasts.
Description
The lathe is the same as 25L, but equipped with a milling/drilling machine. NOVA 25L/3 is sold in over 100 countries! A mini lathe that is suitable for small workshops, repair shops, and of course metal work enthusiasts.
Includes: 3 jaw chuck (125 mm), 2 pcs. live centers, gear wheel set for threading.
The stand is optional.
Data sheet
Voltage (V)
380
Rated Power (W)
750
Milling capacity (mm)
20
Head tilt (°)
90
Spindle
MT3
Drill chuck
16
Distance between centers (mm)
700
Swing over bed (mm)
250
Spindle bore (mm)
27 (MT4)
Max tool (mm)
16
Tailstock barrel taper
MT2
Tailstock barrel travel (mm)
35
Cross slide travel X (mm)
115
Feeding speed Y (mm/r)
0,05-0,1
Range of threads (metric)
0,2-3,5 (20pcs)
Range of threads (inches)
8-56 (20pcs)
Width (mm)
1250
Length (mm)
550
Height (mm)
410
Weight (kg)
230
Warranty
1 year
