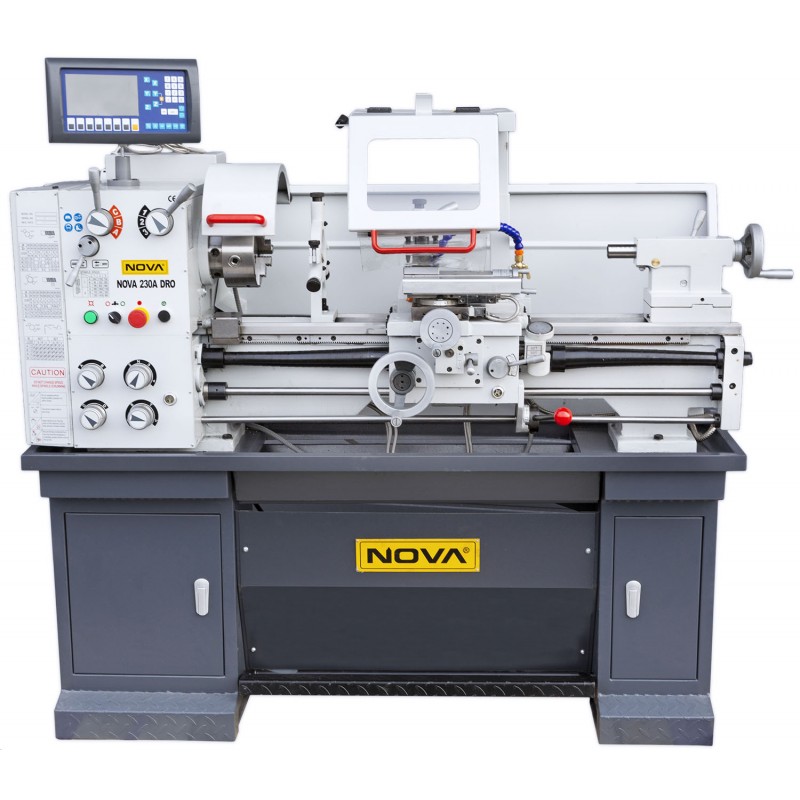

NOVA 230A Metal Lathe with 3-axis digital measuring system

Out of stock (ask delivery time)

NOVA 230A with 3-axis digital measuring system as standard.

  • -15%
NOVA 230A Metal Lathe with 3-axis digital measuring system
SORME230AD
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
Norm. 7,599.00 €
You save 15% 1,139.85 €
6,459.15 € vat 25.5 %
5 146,73 €
tax excl.
notifications_active Subscribe price drop
Quantity
Out of stock (ask delivery time)

Description

NOVA 230A is a metal lathe for demanding professional use. Hardened and precision machined slides. Automatic longitudinal and vertical feeding. Nova 230A has 910 mm space  between centers. Maximum workpiece diameter is 300 mm. Powerful 1.5 kW 3 phase motor.

3-axis digital measuring system as standard.

Includes: 3-axis digital measuring system, 3 and 4 jaw chucks, foot brake and a cabinet with sturdy stand, backplate, oil sump, cooling system, support brackets (2 pcs) and work light.

Data sheet

Voltage (V)
380
Rated Power (W)
1500
Rotating speed (rpm)
65-1800 (18 pcs)
Distance between centers (mm)
910
Swing over bed (mm)
300
Swing over cross slide (mm)
178
Spindle bore (mm)
38 (MT5)
Max tool (mm)
16
Tailstock barrel taper
MT3
Tailstock barrel travel (mm)
100
Carriage movement (mm)
860
Cross slide travel Y (mm)
76
Cross slide travel X (mm)
160
Feeding speed Y (mm/r)
0.052-1.392 (32 pcs)
Feeding speed X (mm/r)
0.014-0.38 (32 pcs)
Range of threads (metric)
0.4-7.0 (26 pcs)
Range of threads (inches)
4-56 (34 pcs)
Spindle nose
D1-4 Camlock (MK5)
Width of bed (mm)
180
3 jaw chuck
K11-160/D4
4 jaw chuck
K72-200/D4
Faceplate
255mm /D4
Width (mm)
1600
Length (mm)
730
Height (mm)
1160
Weight (kg)
431
Warranty
1 year
Show all
