NOVA SB-108 Oscillating Edge Sander

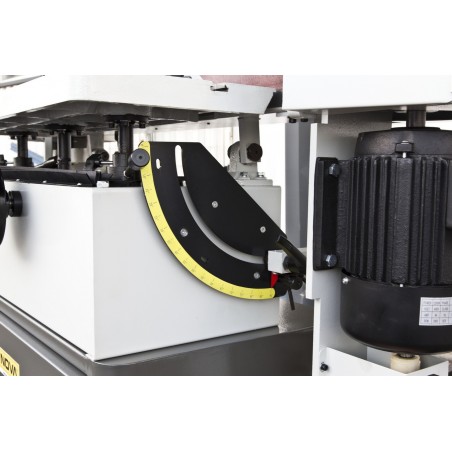

The sander comes with a big tilting cast-iron table: size 905 x 305. The front table: 290 x 259 mm. The belt: 150 x 2750 mm, the belt can be adjusted to 90° angle.
Description

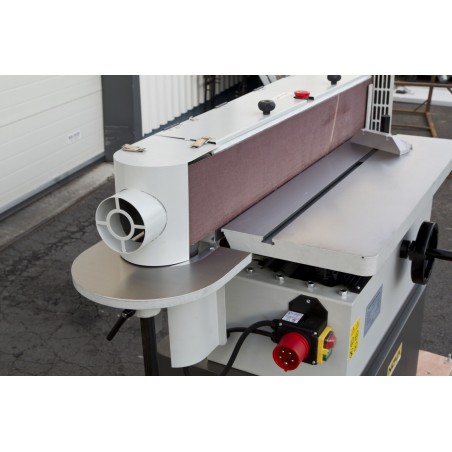

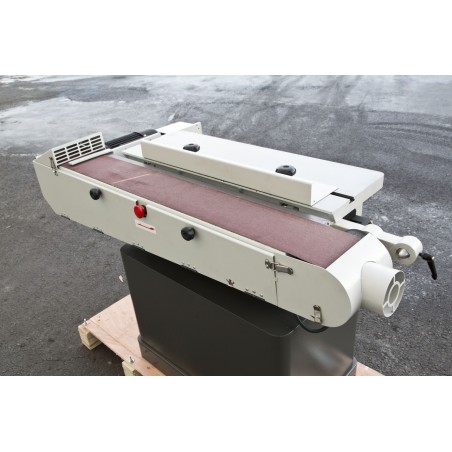

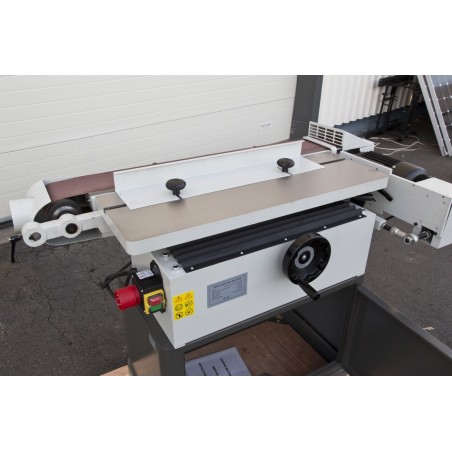

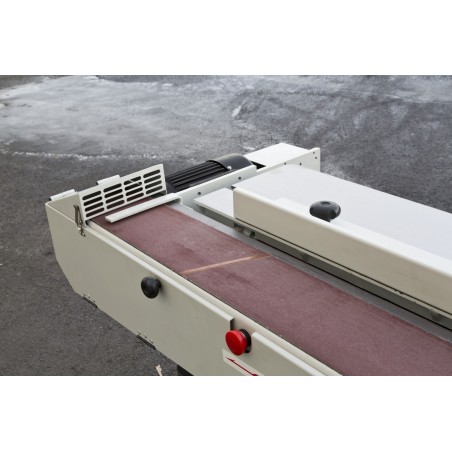

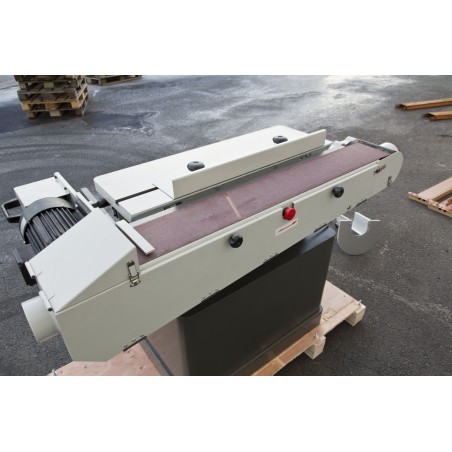

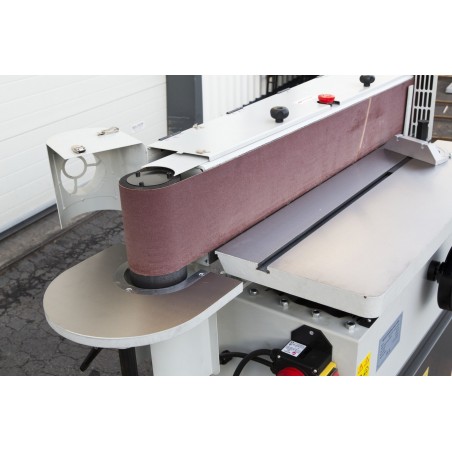

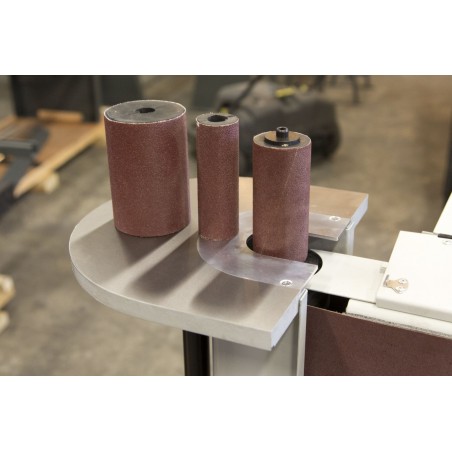

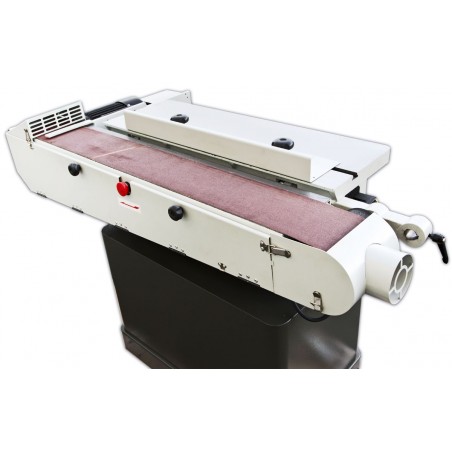

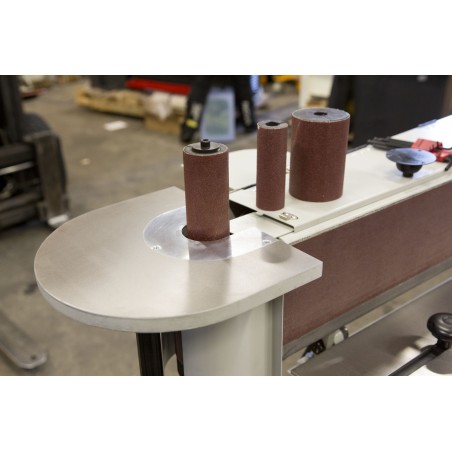

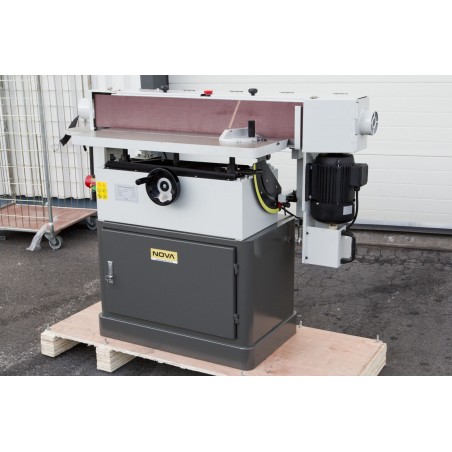

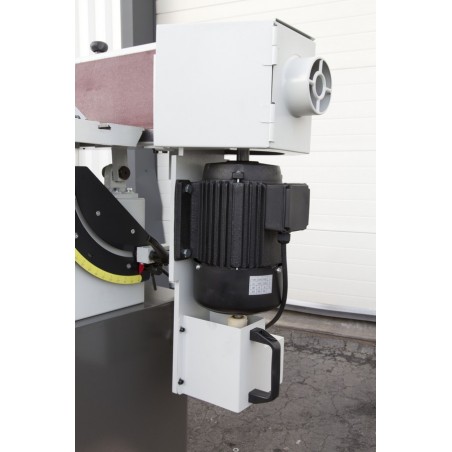

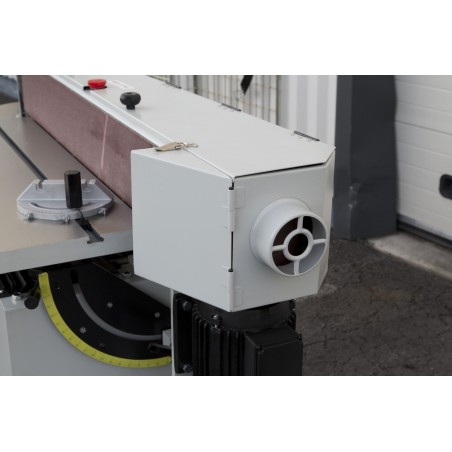

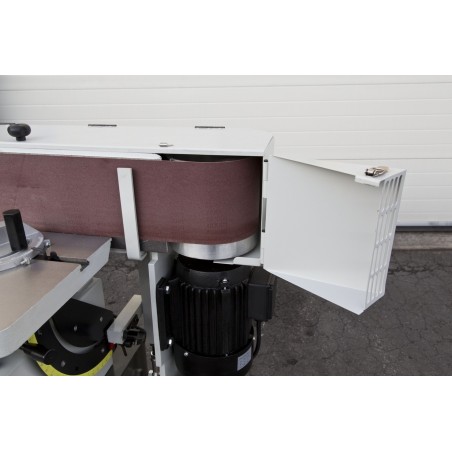

The sander comes with a big tilting cast-iron table: size 905 x 305. The front table: 290 x 259 mm. The belt: 150 x 2750 mm, the belt can be adjusted to a 90° angle. The rotation speed of the belt: 960 m/min. 2.2 kW motor. The machine has a 100 mm dust removal connector. The sander comes with a stand with a cabinet, also a controller is included to the package. Drum sander is as a standard. There is a quick release for the belt. Due to this, the belt is very easy and simple to change. Protected bearings, there is no need for greasing. The stand is cast-iron. Weight is 207 kg. There is included a P80 belt, and 38 mm, 51 mm and 76 mm sanding rolls in the package.
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 2200
- Sanding belt size (mm)
- 150 x 2750
- Sanding belt speed (m/min)
- 960
- Sanding roll (mm)
- 38X110 51X110 76X110
- Oscillation (mm)
- 20
- Dust collector port (mm)
- 100
- Second table size (mm)
- 290 x 259
- Main table size (mm)
- 905 x 305
- Table movement (mm)
- 120
- Noise level dB(A)
- 80 noload
- Width (mm)
- 700
- Length (mm)
- 1540
- Height (mm)
- 1120
- Weight (kg)
- 207
- Warranty
- 1 year
