NOVA Notching Machine
Description
Notching Machine is an affordable notching machine for pipes. Simple and easy to use. Now pipe couplings are quick and easy to make. Always good and successful joints.

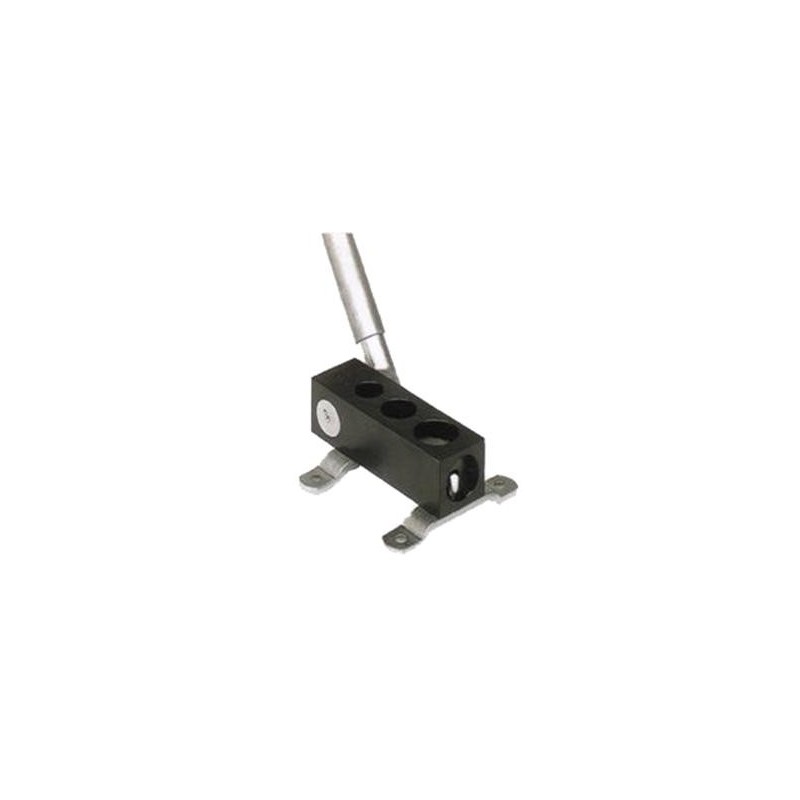

R1
Suitable for tubes: 1/4" NPS, 3/8" NPS and 1/2" NPS / DN8, DN10 and DN15 (NPS = Nominal pipe size)
The pipes approximate outer diameter: 13,5-13,7 mm, 17,2 mm, 21,3 mm
Maximum wall thickness: 3 mm
Weight: 6,5 kg
R2
Suitable for tubes: 3/4" NPS, 1" NPS and 1-1/4" NPS / DN20, DN25 and DN32. (NPS = Nominal pipe size)
The pipes approximate outer diameter: 26,7-26,9 mm, 33,4-33,7 mm, 42,2-42,4 mm
Maximum wall thickness: 3 mm
Weight: 10 kg
R3
Suitable for tubes: 1-1/2” NPS and 2” NPS / DN40 and DN50 (NPS = Nominal pipe size)
The pipes outer diameter: 48,3 mm, 60,3 mm
Maximum wall thickness: 3 mm
Weight: 16 kg
Data sheet
- Warranty
- 1 year
