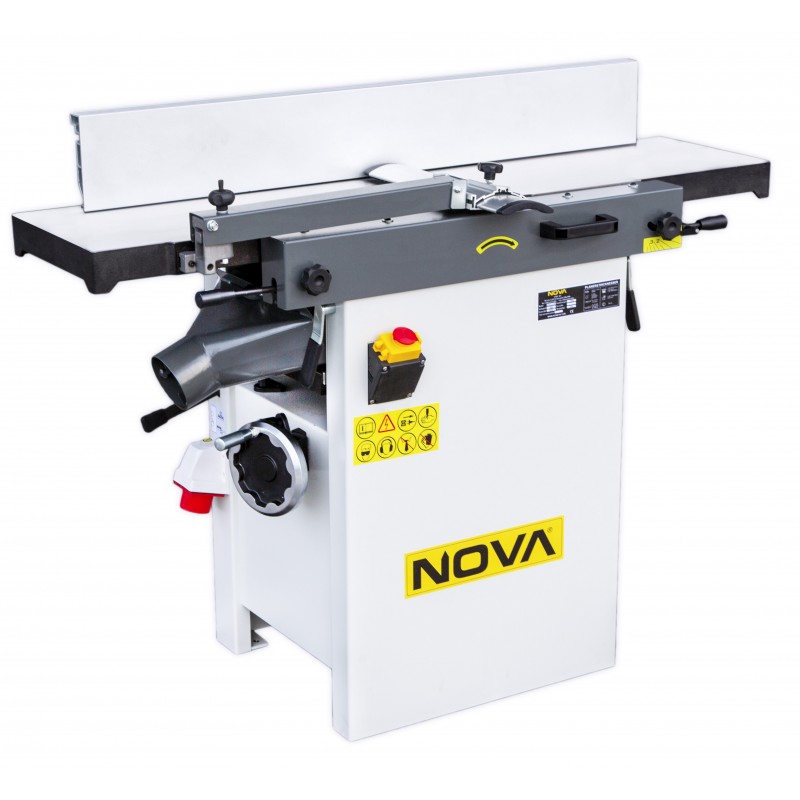

NOVA PT-310CH Jointer/Planer Combination Machine with helical cutter
The NOVA PT-310CH jointer / planer with a spiral cutter offers top quality for demanding use. This efficient, easy-to-use, and precise machine is an excellent choice for woodworking.
Description
The NOVA PT-310CH jointer-planer with a helical cutter is designed to meet the needs of both hobbyists and professionals. This machine offers an efficient solution for woodworking with its combined jointing and planing capabilities. The machine's high-quality cast table and sturdy frame ensure stable and vibration-free operation, allowing for precise and high-quality planing results. Switching from jointing to planing is easy and quick, enhancing work speed and user comfort.
The NOVA PT-310CH is equipped with a 3000 W motor, providing sufficient power for demanding applications. The cutter diameter is 70 mm, and the planing width is 310 mm, making this machine an excellent choice for a variety of woodworking tasks. The 100 mm connection suitable for dust extraction works for both jointing and planing, facilitating dust management and keeping the work environment clean.
This model is equipped with a helical cutter.
Advantages of the helical cutter:
- Long-lasting, four cutting edges per blade. The blade is reversible.
- Better planing finish.
- Extremely quiet operation.
- Energy efficient.
The NOVA PT-310CH jointer-planer with a helical cutter is professional-grade for heavy use. It meets the strict requirements of both hobbyists and carpenters, offering ease of use and precision. Learn more and order yours, or contact us for further information.
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 3000
- Motor (rpm)
- 2850
- Knives
- 3
- Cutter speed (rpm)
- 5500
- Cutterhead diameter (mm)
- 70
- Feeding speed (m/min)
- 7
- Max height (mm)
- 225
- Max thicknessing depth (mm)
- 4,5
- Max planing depth (mm)
- 3
- Guide tilt (°)
- 0-45
- Guide (mm)
- 1100 x 150
- Main table size (mm)
- 1300 x 310 / 545 x 308
- Width (mm)
- 750
- Length (mm)
- 1300
- Height (mm)
- 1000
- Weight (kg)
- 210
- Warranty
- 1 year
