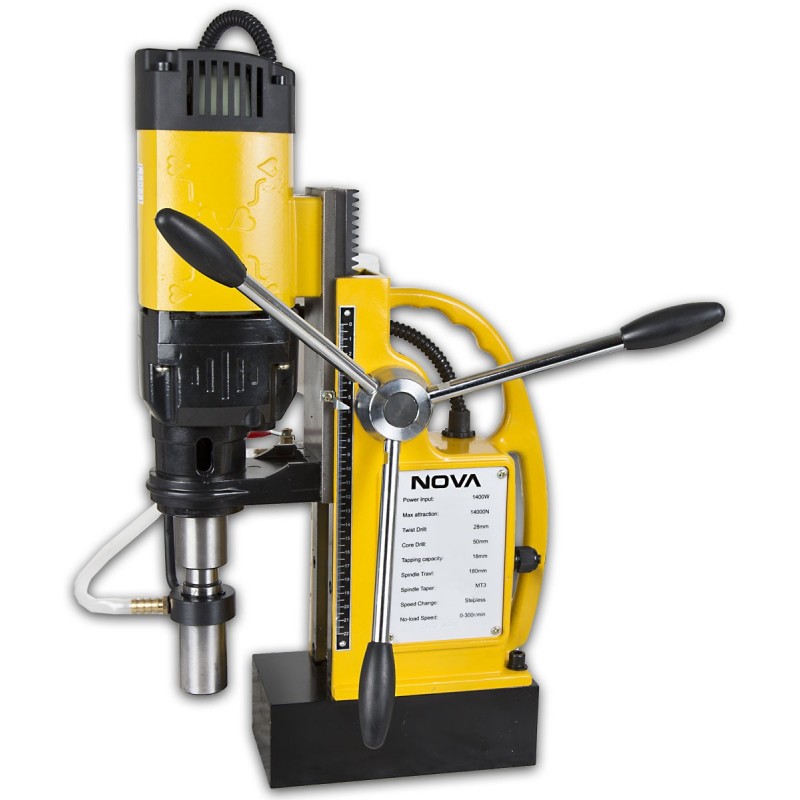

NOVA J28SV Magnetic Drill
Nova J28SV magnetic drill with stepless speed adjustment and reversible motor for threading.
Description
Nova J28SV magnetic drill with stepless speed adjustment and reversible motor for threading. With a 1400-watt motor, the drill has a speed of 0-300 rpm. 22 kg heavy NOVA J28SV has an MT3 spindle with 170 mm movement and 28 mm drilling capacity (50 mm with hole saw) and reversible motor for threading. Standard equipment includes 3/4 ”Weldon chuck, drill chuck + spindle and fluid container.
Data sheet
Voltage (V)
230
Rated Power (W)
1400
Motor (rpm)
0-300
Drilling capacity (mm)
28
Reach cutting (mm)
50
Spindle
MT3
Magnet power (kg)
1400
Distance spindle to table (mm)
45-215
Spindle travel (mm)
170
Drill chuck
3-16
Width (mm)
130 (290)
Length (mm)
300
Height (mm)
395-570
Weight (kg)
22
Warranty
1 year
