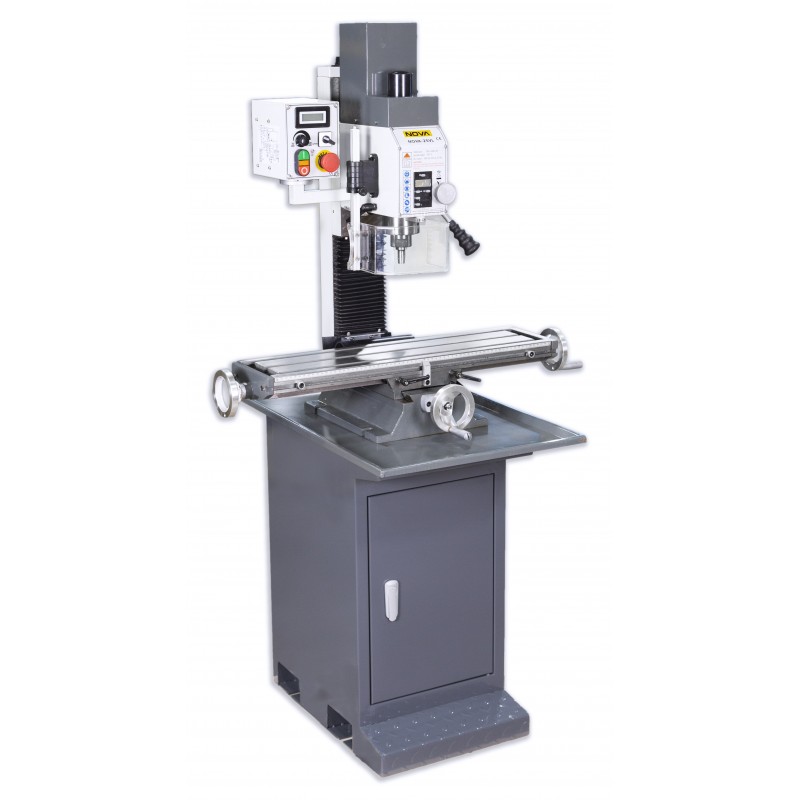

NOVA BF25VL Milling Machine

Last item in stock

NOVA BF25VL milling machine (without display) has a 750 W motor, 25 mm drilling capacity and is a qualitative machine for milling, drilling, grinding and threading.

Also available with a large Sino-digital display, which makes working easier and more accurate.

NOVA BF25VL Milling Machine
search
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
  • NOVA BF25VL Milling Machine
JYRBF25VL


Always affordable prices



Fast delivery



Reliable warranty


NOVA
€2,599.00 vat 25.5 %
2 070,92 €
tax excl.
Quantity
Last item in stock

Description

NOVA BF25VL milling machine (without display) has a 750 W motor, 25 mm drilling capacity and is a qualitative machine for milling, drilling, grinding and threading. Sturdy dovetail-frame, 0.01 mm accurate machining result and with a slope of 45 degrees in both directions ensures a qualitative work. Working comfort is guaranteed with a high quality cross-feed table, digital display for spindle movement. Stepless speed adjustment. Directional weighers and two speed ranges.

NOTE! The stand in the picture is accessory equipment.



20VL / 25VL measures



ulkomitat jalustalla.jpg



Data sheet

Voltage (V)
230
Rated Power (W)
900
Rotating speed (rpm)
50 - 2250
Drilling capacity (mm)
25
Milling capacity (mm)
65 / 20
Head tilt (°)
90
Spindle
MT3
T-slot distance
65
Table T -slots (mm)
12
Spindle max distance to table (mm)
370
Spindle travel (mm)
50
Main table size (mm)
700 x 180
Table movement (mm)
490 x 150
Noise level dB(A)
78
Width (mm)
950
Length (mm)
570
Height (mm)
940
Weight (kg)
120
Warranty
1 year
