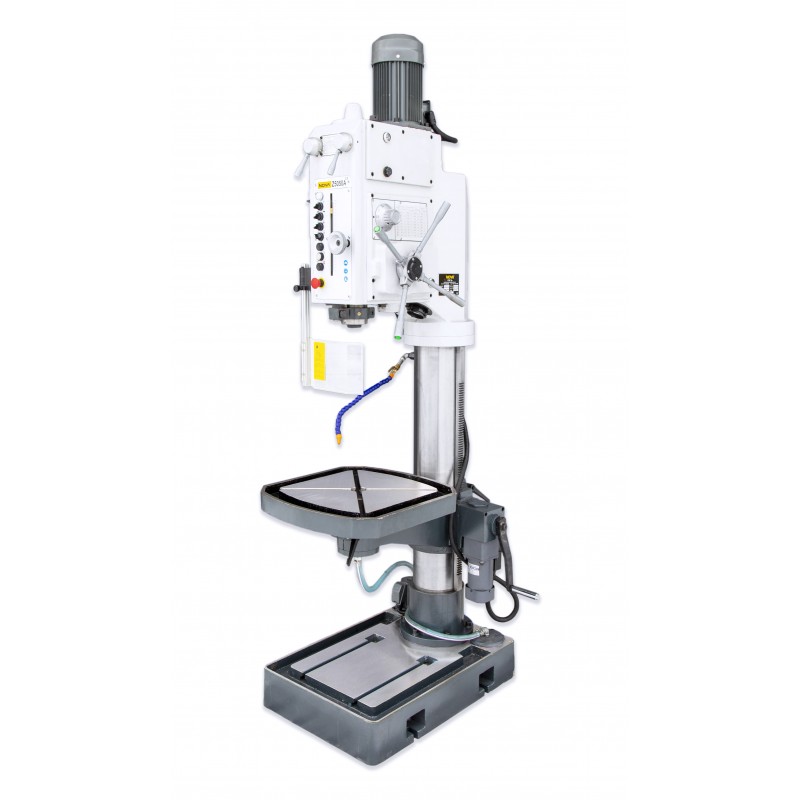

NOVA 5050A Industrial Drill Press

Out of stock (ask delivery time)

The NOVA 5050A Vertical Drilling Machine is a versatile and efficient tool designed for precision drilling, reaming, tapping, and milling of small to medium-sized components. With a maximum drilling diameter of 50 mm, it features a robust motor, automatic lubrication, and advanced safety mechanisms, making it ideal for workshops and production lines.

  • On sale!
NOVA 5050A Industrial Drill Press
PORAZ5050A
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
10,099.00 € vat 25.5 %
8 047,01 €
tax excl.
notifications_active Subscribe price drop
Quantity
Out of stock (ask delivery time)

Description

POWERFUL NOVA 5050A is a very popular and reliable industrial drill that has six speeds with automatic feed. NOVA 5050A is a 820 kg heavy and 2454 mm high drilling machine with 3 / 2.4 kW motor, 50 mm drilling capacity and MT4 spindle with 230 mm movement. The 18 speed ranges (54-2090 rpm), automatic rotation direction, six speed automatic feed (0,05 / 0,1 / 0,15 / 0,2 / 0,25 / 0,3 mm/r), table lift motor and cooling pump.

Includes: Drill chuck, collet adapter MT4 ->MT3 and MT4 -> MT2, wedge-key and oil can.

Data sheet

Voltage (V)
380
Rated Power (W)
3000 / 2400
Rotating speed (rpm)
54 - 2090 / 18 speed
Drilling capacity (mm)
50
Tapping capacity cast iron (mm)
M30
Tapping capacity steel (mm)
M27
Spindle
MT4
Table T -slots (mm)
18 / 32
Spindle max distance to table (mm)
800
Distance spindle to column (mm)
375
Distance spindle to stand (mm)
1300
Spindle travel (mm)
230
Diameter of column (mm)
220
Automatic drilling feed (mm/rpm)
0.05 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3
Main table size (mm)
600 x 600
Stand (mm)
600 x 860
Width (mm)
610
Length (mm)
1016
Height (mm)
2454
Weight (kg)
820
Warranty
1 year
Show all
