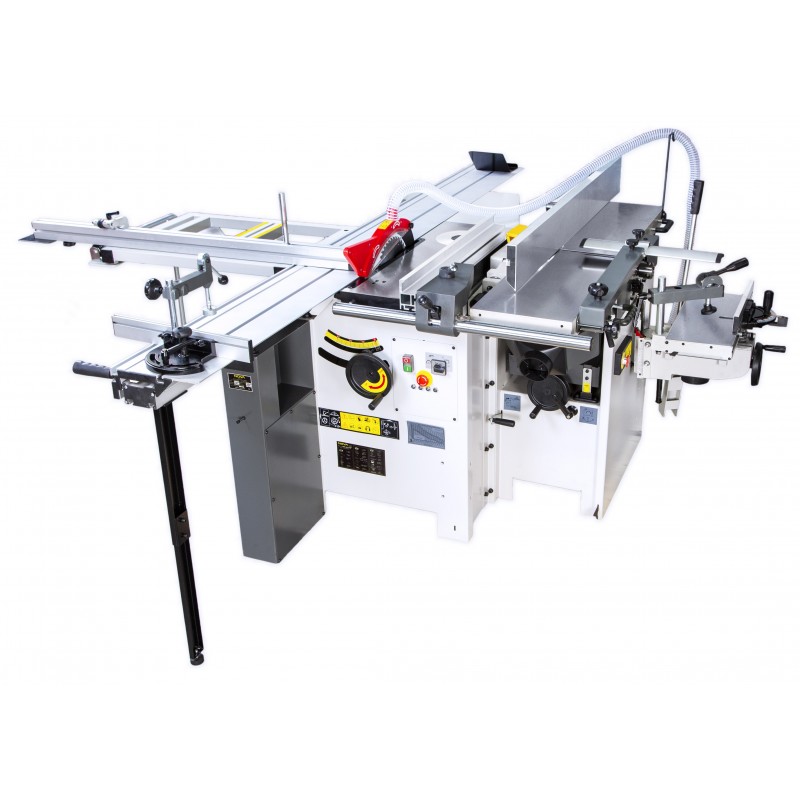

The most versatile woodworking machine on the market! The CM-800 is equipped with a jointer, planer, long-hole drilling, shaper, grinding machine, a precision circular saw with scoring blade and tilt for the blade.
Saw motor - 3.8 kW/380V
Saw blade speed - 4500 rpm (254 x 3 x 30 mm)
Scoring blade speed - 8500 rpm (100 x 2 x 20 mm)
Saw height - 70 mm - 90° / 55 mm - 45°
Table - 300 x 860 mm
Extension table - 300 x 505 mm
Sliding table - 760 x 530 mm
Sliding rail - 270 x 2600 mm
Movement - 1550 mm
Exhaust connection - 100 mm
Milling motor - 2.8 kW/380V
Spindle - 30 mm
Spindle movement - 100 mm
Spindle speed - 1800/3000/6000/9000 rpm
Maximum steel diameter - 200 mm
Table - 300 x 860 mm
Exhaust connection - 100 mm
Planer motor - 3.8 kW/380V
Cutter diameter - 70 mm
Steel blades - 3 pcs. (310 x 19 x 1 mm)
Rotational speed - 4800 rpm
The jointers table - 1390 x 310 mm
Stable guide - 1380 x 150 mm
The tilt of the stable guide - 0-45 °
Maximum jointing - 310 mm / 4 mm
Planer table - 540 x 305 mm
Maximum plane level - 305 mm / 2 mm
Feeding speed - 6 m / min
Exhaust connection - 100 mm
Deep Hole Drilling
Table - 500 x 210 mm
Chuck - 16 mm
Cross movement - 140 mm
Side movement - 290 mm
Lifting/lowering - 125 mm
