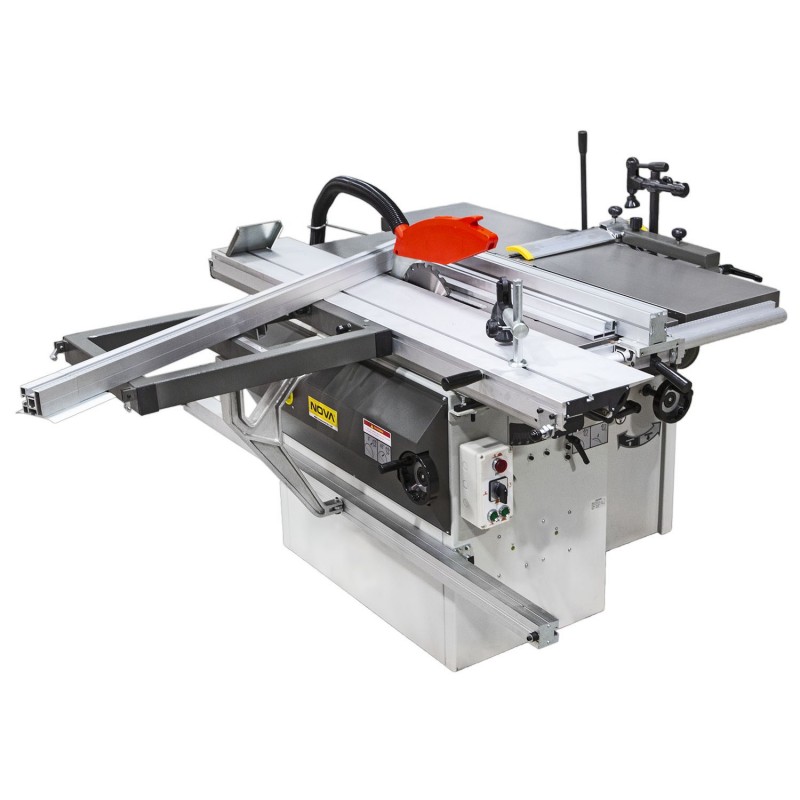

NOVA 16 Combi Wood Working Machine

The Nova 16 combination machine is one of the most versatile combination machines on the market. 5 machines in one. 3 different motors. Large tables in cast-iron.

MTKO16
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
8,690.00 € vat 24 %
7 008,06 €
tax excl.
Quantity
Out of stock (ask delivery time)

Description

Planer motor - 2.2 kW/380V

Cutter - 75/310 mm

Cutter rotation speed - 4000 rpm

Steel - 3 pcs (310 x 30 x 3 mm)

Feed speed - 8 m/min

Maximum planing - 2,5 mm

Max height for planed pieces - 180 mm (planer)

Tilting of the support holder - 0-45°

Stable guide - 150 x 1100 mm

Planer table - 600 x 310 mm

Jointer table - 1290 x 310 mm

Exhaust connection - 100 mm



Circular saw motor - 3 kW/380 V

Saw blade rotational speed - 4050 rpm (250 x 3.2 x 30 mm)

Scoring blade rotational speed - 6300 rpm (80 x 3.2 x 20 mm)

Maximum cutting height - 60 mm - 90° / 42 mm - 45°

Table - 1140 x 300 mm

Sliding rail - 1550 x 240 mm

Sliding table - 600 x 410 mm

Movement - 1600 mm


Milling motor - 3 kW / 380 V

Spindle speed - 7000/5500/3500 rpm

Spindle - 30 mm

Spindle movement - 130 mm

Maximum steel diameter - 140 mm



Deep Hole Drilling

Table size - 365 x 150 mm

Chuck - 16 mm

Side movement - 140 mm

Cross movement - 80 mm

Lifting / lowering - 90 mm

Data sheet

Weight (kg)
375
