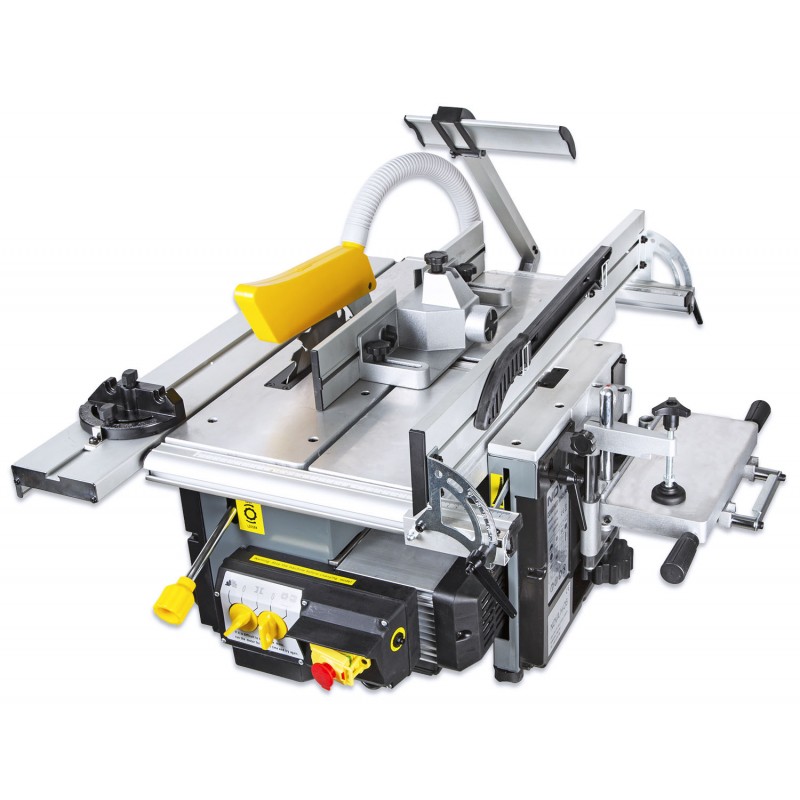

NOVA H-06 Combi Wood Working Machine

Nova H06 combination machine, with 6 machines in one. You have a planer and jointer and saws, a mill and a long hole drill for making joints (stem drill).

MTKOH06
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
1,590.00 € vat 24 %
1 282,26 €
tax excl.
Quantity
In stock

Description

Nova H06 combination machine, with 6 machines in one. You have a planer and jointer and saws, a mill and a long hole drill for making joints (stem drill). Steady stable guide with angular adjustment. Easy to use. When you want all the most important machines for a carpentry in the same machine, here is the machine that you will not be disappointed with. Ideal machine when you want to save on valuable work space. Weight only 49 kg.

Engine                                                  1000 W/230 V


Weight                                                  49 kg
Delivery dimensions                              840 x 635 x 475 mm


Jointer
Planing width                                        154 mm
Jointer table size                                   620 x 154 mm
Maximum planing depth                        1.5 mm
Rotational speed                                   6000 rpm
Blades                                                   2 pcs

Planer
Planing width                                        154 mm
Planing height                                       92 mm
Maximum planing depth                        1 mm
Automatic feed                                      7 m / min

Circular saw
Steel diameter                                      200 mm
Max cutting                                           60 mm
Rotational speed                                   4200 rpm
Working table size                                10 x 620 mm
Sliding rail movement                           500 mm
Sliding rail size                                     120 x 740 mm

Milling
Rotational speed                                   9000 rpm
Spindle size                                          12 mm
Spindle adapter                                     6 mm and 8 mm
Spindle movement                                42 mm



Long hole drill / drill
Chuck size                                           13 mm
Chuck adapter                                      6, 8 and 10 mm
Table size                                             260 x 125 mm
Vertical movement                                60 mm
Side movement                                    95 mm
Depth movement                                  45 mm

Data sheet

Voltage (V)
230
Rated Power (W)
1100
Table height (mm)
345
Width (mm)
780
Length (mm)
850
Weight (kg)
49
