BDS MAB 485 magnetic drill

BDS MAB 458 magneettiporakone
  • BDS MAB 458 magneettiporakone
  • BDS MAB 458 magneettiporakone
  • BDS MAB 458 magneettiporakone
MAB485
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

BDS
1,590.00 € vat 24 %
1 282,26 €
tax excl.
Quantity
Last item in stock

Description

The Made in Germany magnetic core drilling machines of the ProfiPLUS category are primarily intended for users in plant and mechanical engineering. MAB 485 The best entrance into the ProfiPLUS class: indispensable in the workshop and when being away on a job. The advantages of the MAB 485 - Continuous electronic control of motor output and speed. Drilling with core and twist drills, countersinking, reaming, thread cutting. Two-stage gear unit, non-destructive with oil bath gearbox. A versatile magnetic drilling machine for workshop and assembly applications. Powerful & Reliable 105 Amp double-insulated motor. Weight: 13 kg. High-speed variable-speed oil bath gearbox ideal for annular cutters and twist drills. Designed for continuous use. Intelligent electronic torque control. Annular cutting-drill up to 40 mm diam. & tapping up to M16. Twist drilling up to 18 mm diam. Integrated cutting oil reservoir. Automatic internal lubrication. Swivel base (model MAB 485 SB). Keyless drill chuck. Integrated Safety: Green/Red LED magnetic force indicator for safe operation. Internal cable routing. The simple ergonomic arrangement of controls for one-handed operation Emergency-off function.

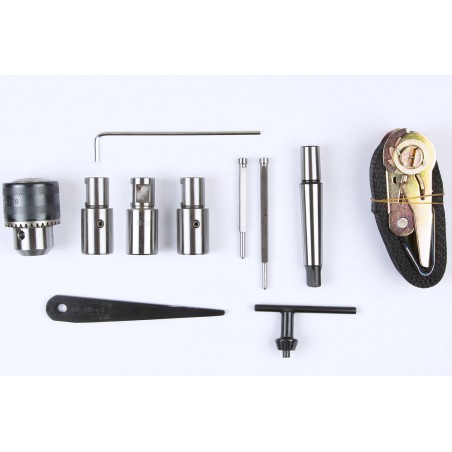

Included:

• Carrying Case

• Fastening chain

• Guide pin for hole saw ZAK 075 + 100

• Weldon keyless drill chuck 19,05 mm

• Wedge MT2

• Drill bit MT2 / B16

• Weldon threading-tap adapter M10, M12, M16

• Drill chuck 13 mm

Data sheet

Voltage (V)
230
Rated Power (W)
1150
Rotating speed (rpm)
50-250 /100-450 (2 speed)
Core drill size Ø (mm)
12-40
Drilling capacity (mm)
18
Thread cutting (mm)
M16
Spindle
MT2/MK2
Spindle travel (mm)
160
Chuck-system
weldon 19
Reaming (mm)
18
Countersinking (mm)
40
CW / CCW rotation
Torque Control
Magnet indicator
Permanent internal lubrication
Friction clutch
Overheating protection
Magnet Size (mm)
84 x 168
Weight (kg)
13
