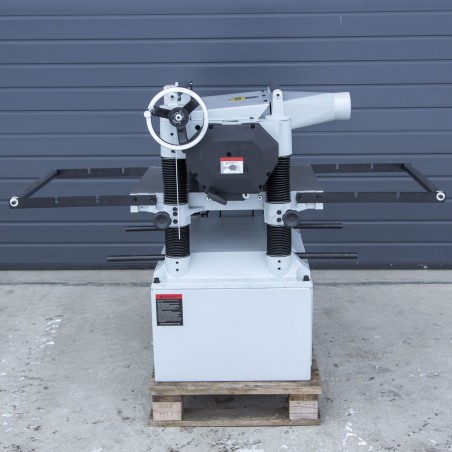

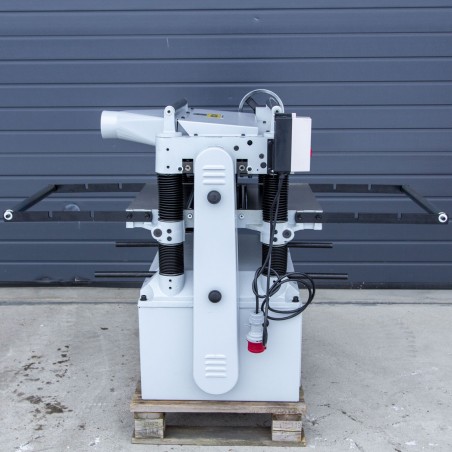

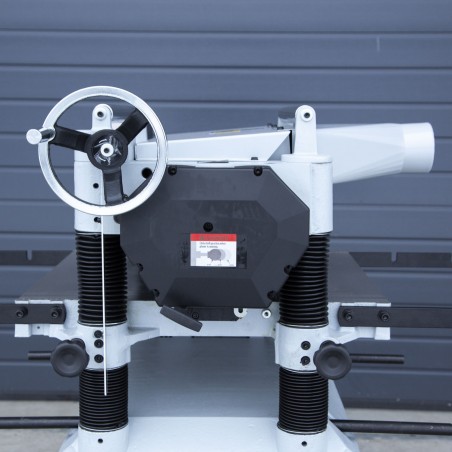

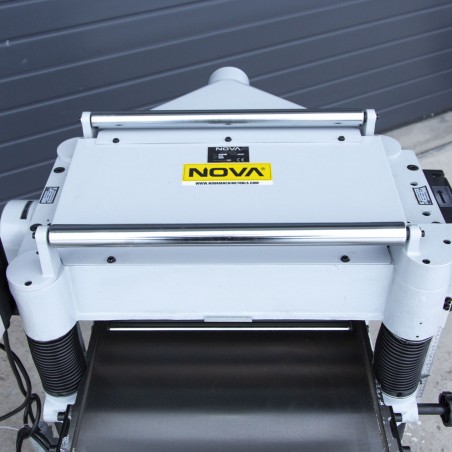

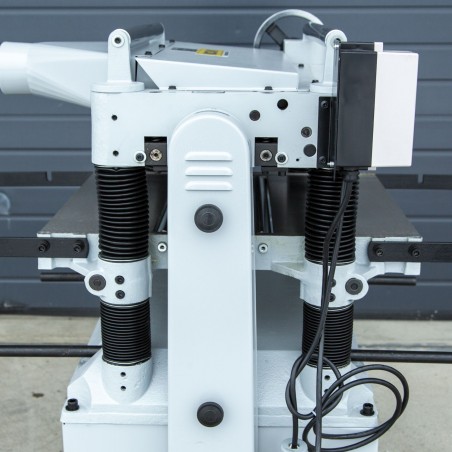

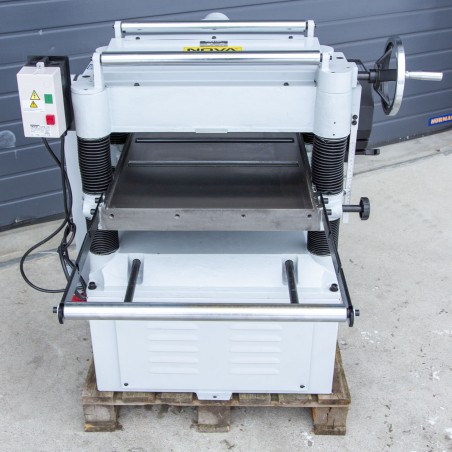

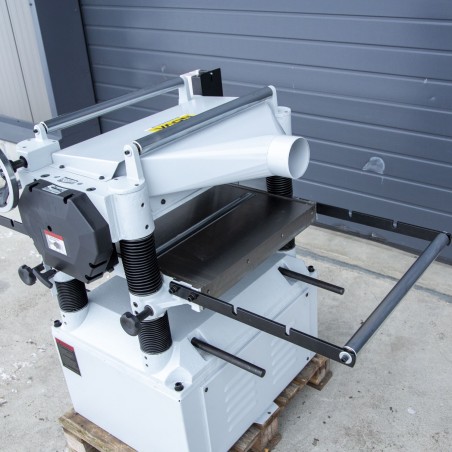

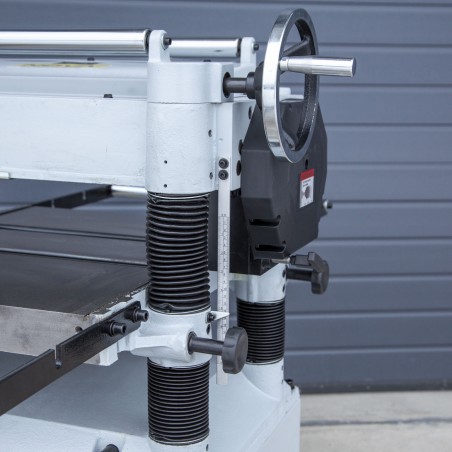

NOVA MB-105 Planer

The NOVA MB-105 has a 410 kg robust design, vibration-free driving and a powerful 2.2 kW motor that generates 5000 rpm.

HOYMB105
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
3,090.00 € vat 24 %
2 491,94 €
tax excl.
Quantity
In stock

Description

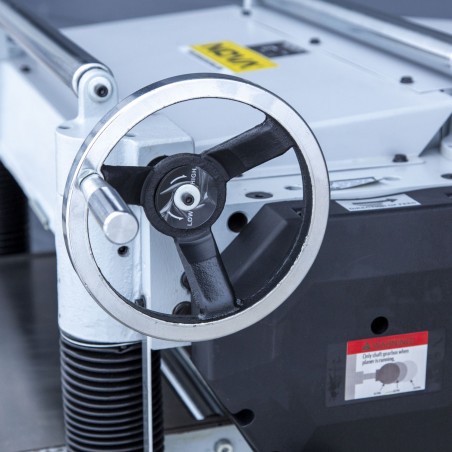

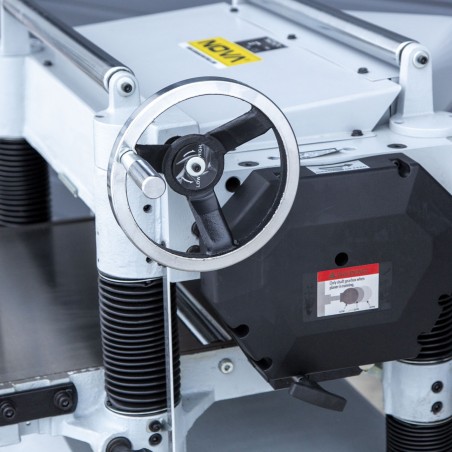

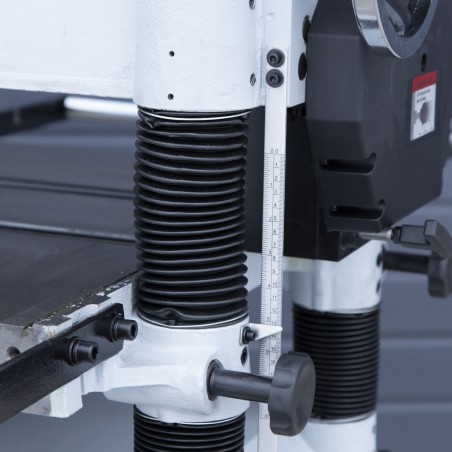

The NOVA MB-105 has a 410 kg robust design, vibration-free driving and a powerful 2.2 kW motor that generates 5000 rpm. NOVA MB-105 has a planing width of 508 mm (20”) with a 4-blade 80 mm cutter and a maximum thickness of 204 mm for planed wood. Two feed rates (4.96/6.33 m/min). Planing depth less than 210 mm is 6 mm and 210-508 mm wide is 3 mm. Table width: 1415 x 540 mm. Very accurate adjustment and good price/quality ratio.





Data sheet

Voltage (V)
380
Rated Power (W)
2200
Knives
4
Max cutting width (mm)
508
Cutter speed (rpm)
5000
Cutterhead diameter (mm)
80
Feeding speed (m/min)
4,8 / 6,9
Max height (mm)
204
Max cutting (mm)
6
Dust collector port (mm)
100
Width (mm)
654 (1460 with rollers)
Length (mm)
980
Height (mm)
985
Weight (kg)
342
