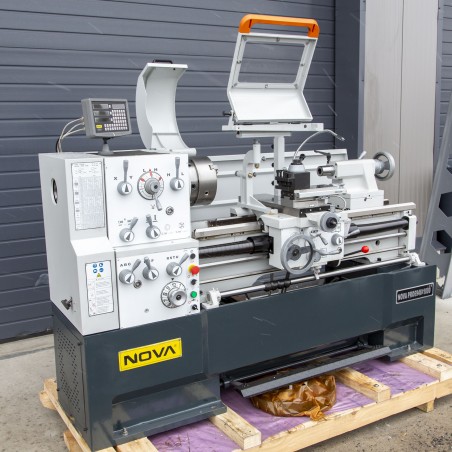

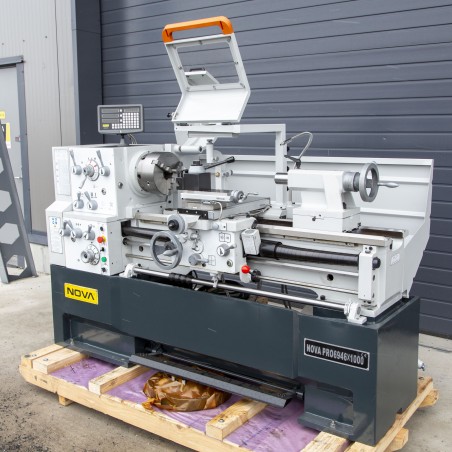

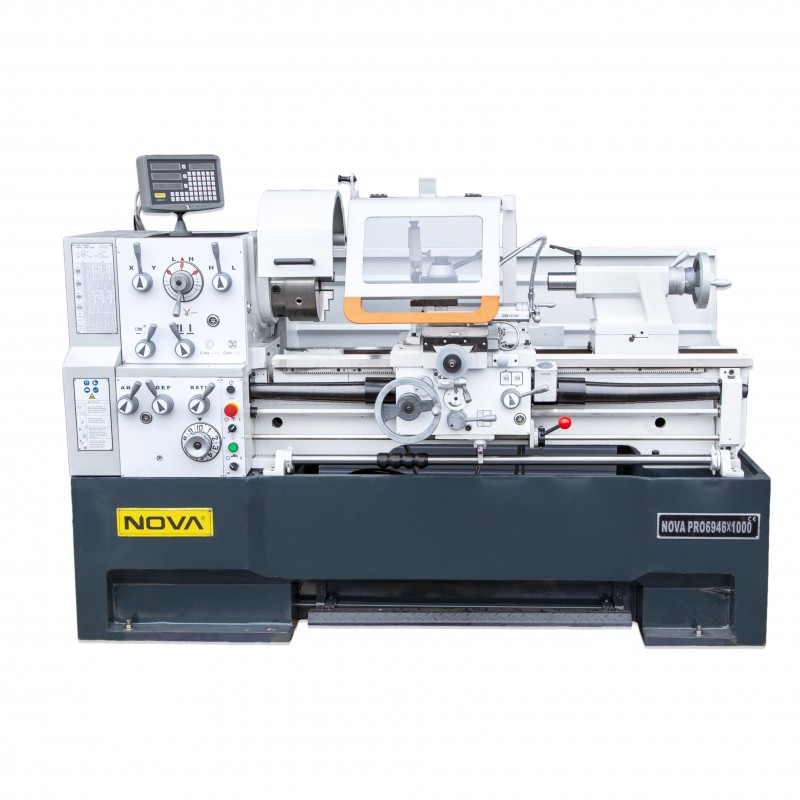

NOVA 6946 X 1000 tailstock metal lathe

NOVA 6946 X 1000 for demanding professional use.

SORME694610
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
22,900.00 € vat 24 %
18 467,74 €
tax excl.
Quantity
Last item in stock

Description

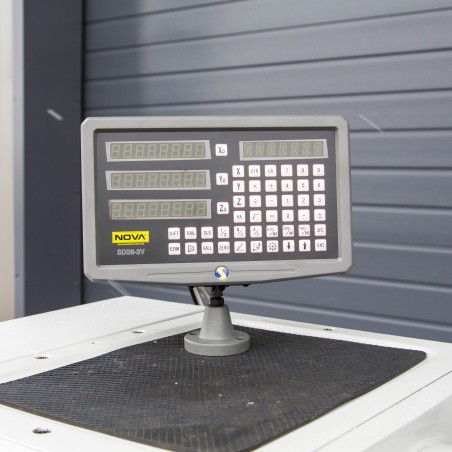

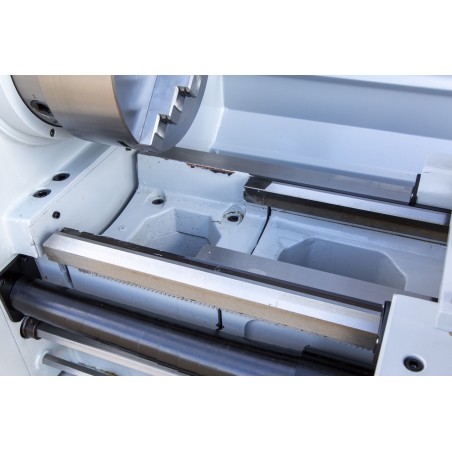

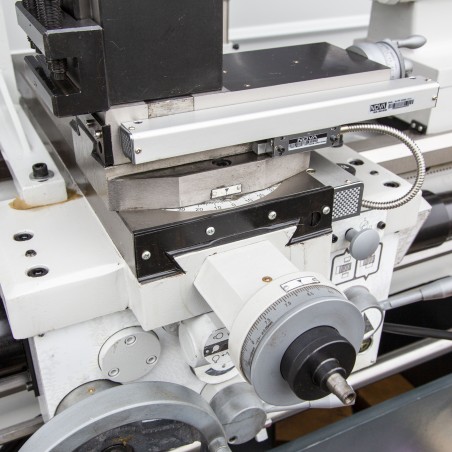

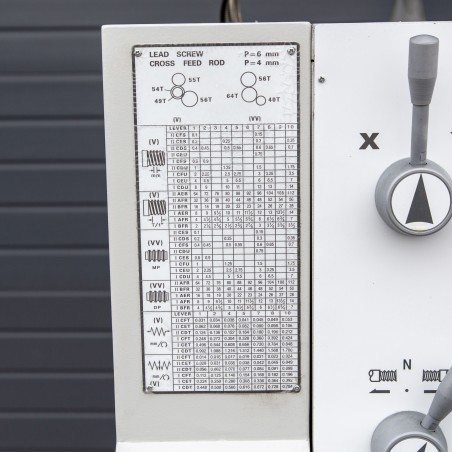

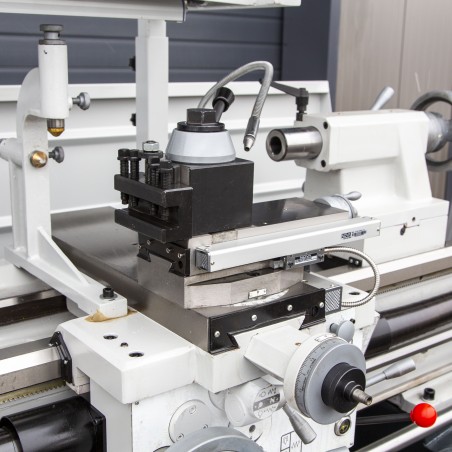

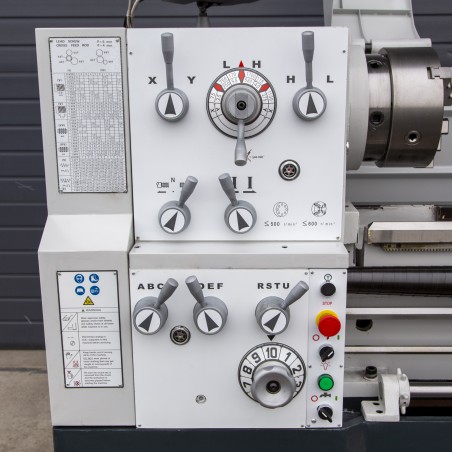

NOVA 6946 X 1000 for demanding professional use. The lathe equipped with a large SINO digital display, automatic transverse and longitudinal feed, large 1000 mm space between the centers and an 80 mm hole diam. through the spindle. The lathe has induction-hardened and precision machined slide bars. The maximum diameter of a work-piece to be machined is 460 mm, and by removing a slide element, the diameter of the piece to be machined can be up to 690 x 165 mm! Powerful 5.5 kW three-phase motor. 12 speeds. Equipped with foot brake. Threading is simple and easy to perform without changing gears.

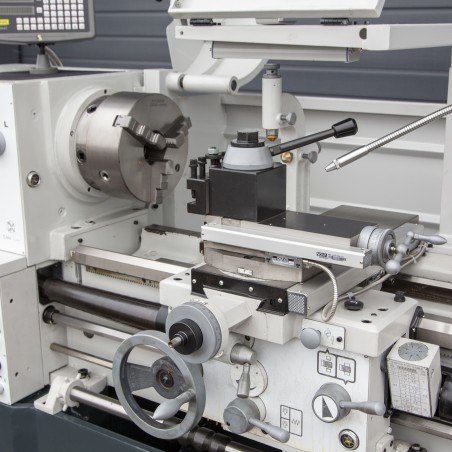

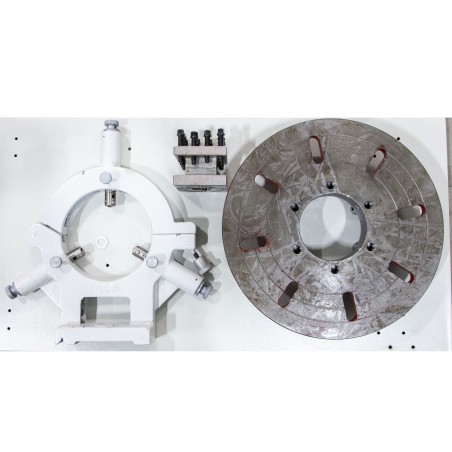

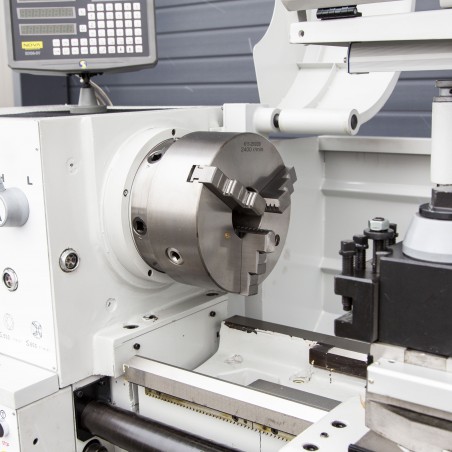

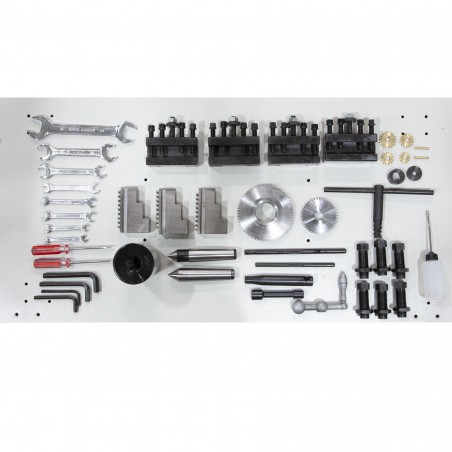

Equipped with: digital display, 3-jaw chuck (250 mm) and 4-jaw chuck (320 mm), stand, support dock, 2 pcs dead centers, oil pan, back plate, face plate (450 mm), work lamp, cooling system, wrenches and toolbox.

Data sheet

Voltage (V)
380
Rated Power (W)
5500
Rotating speed (rpm)
25 - 1700 (12 speed)
Distance between centers (mm)
1000
Swing over bed (mm)
460
Swing over gap (mm)
690x165
Swing over cross slide (mm)
270
Spindle bore (mm)
80 (MT7)
Max tool (mm)
25
Tailstock barrel taper
MT4
Tailstock barrel travel (mm)
130
Cross slide travel Y (mm)
128
Cross slide travel X (mm)
285
Feeding speed Y (mm/r)
0.03-1.7 42 pcs
Feeding speed X (mm/r)
0.014 - 0.784 42 pcs
Range of threads (metric)
0,1-14 (41pcs)
Range of threads (inches)
2-112 T.P.I. 60 pcs
Fuse (A)
32
Width (mm)
1070
Length (mm)
2200
Height (mm)
1390
Weight (kg)
1655
