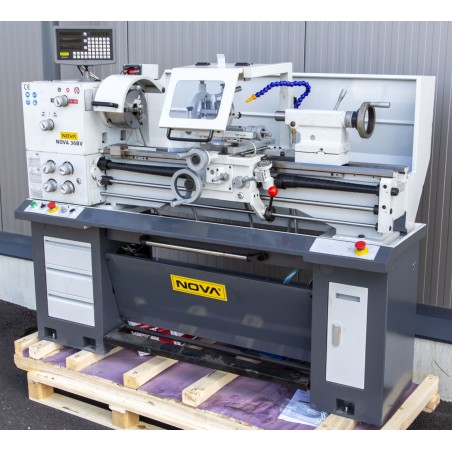

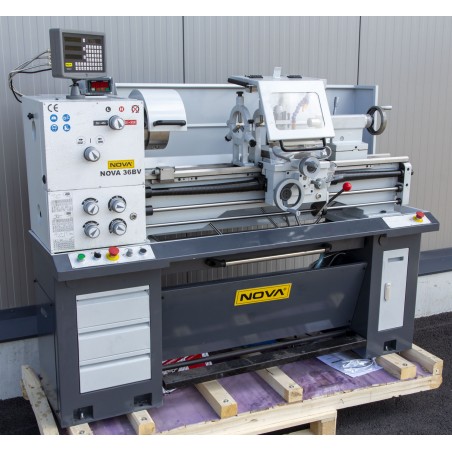

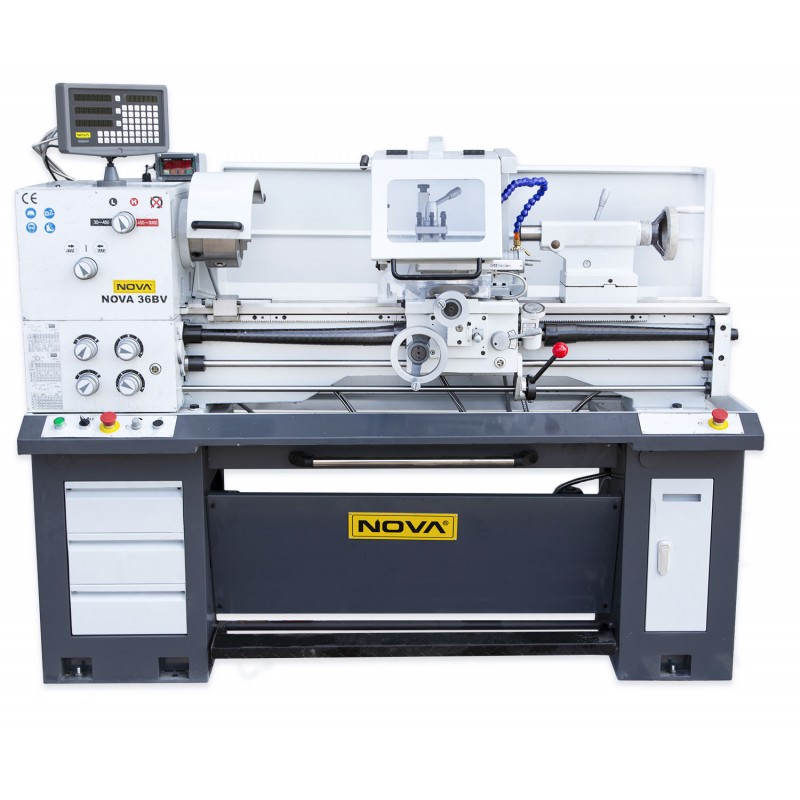

NOVA 36BV tailstock metal lathe

In stock

Nova 36BV lathe is equipped with 51-mm hole through the spindle. Stepless speed control (with frequency converter). A separate digital RMP display added to the lathe and a large Sino digital display. Comes with a 3 and 4 jaw chucks. The lathe is equipped with the foot brake as standard equipment.

  • -20%
NOVA 36BV tailstock metal lathe
search
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
  • NOVA 36BV tailstock metal lathe
SORME36BV


Always affordable prices



Fast delivery



Reliable warranty


NOVA
Regular price €10,999.00
Save 20% -€2,199.80
€8,799.20 vat 25.5 %
7 011,31 €
tax excl.
Quantity
In stock

Description

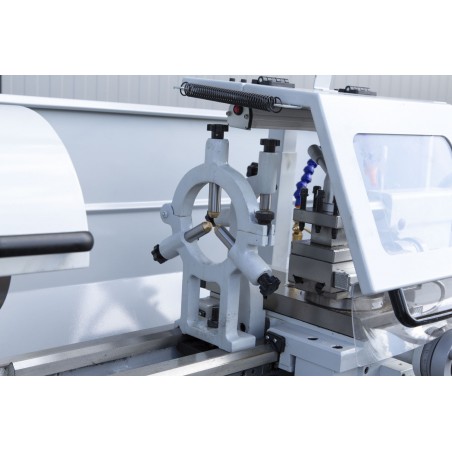

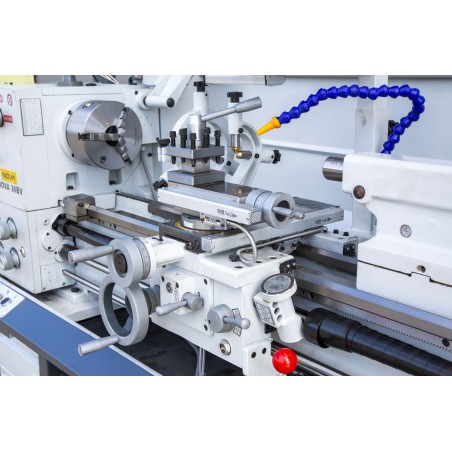

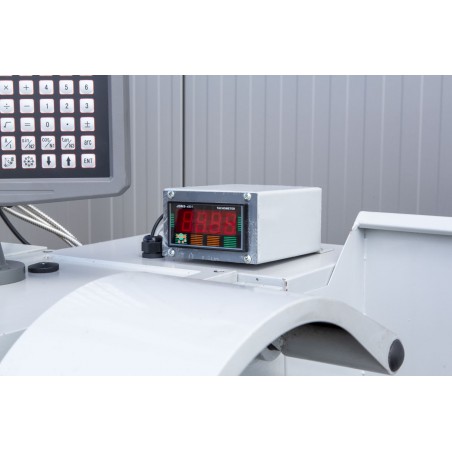

The best offer on the market! Nova 36BV is equipped with a 51-mm hole through the spindle. Stepless speed control. A separate digital RMP display is added to the lathe. Of course, we also offer as standard a large Sino digital display. Comes with a 3 and 4 jaw chucks. Halogen working lamp and cooling system are included. The lathe is equipped with top-quality induction-hardened and machined slide bars Two slide supports are included in the package. A lathe that is equipped so well and with such a big hole through the spindle have usually double the price. Now you get a lathe, which comes from one of the world's leading lathe manufacturers.

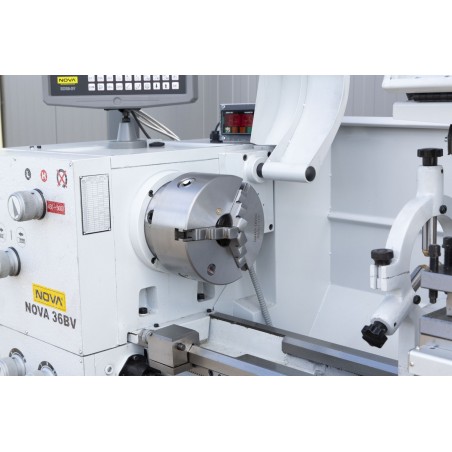

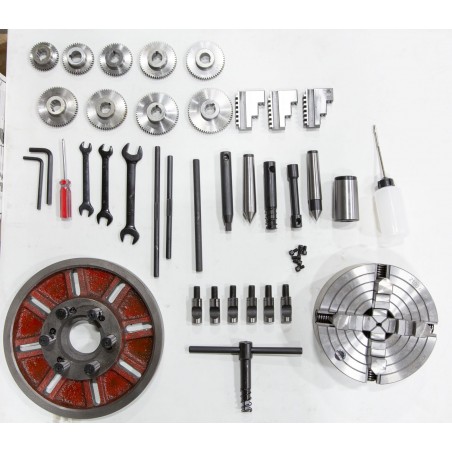

Following included in the package: Stand for lathe, 3 jaw chuck (178 mm), 4 jaw chuck (200 mm), 2 pcs. support bearings, oil pan, back plate, face plate piece 320 mm, working light, cooling pump, wrenches, tool box, fixed live centers.

Data sheet

Voltage (V)
380
Rated Power (W)
2200
Rotating speed (rpm)
25 - 1700 (12 speed)
Distance between centers (mm)
1000
Swing over bed (mm)
360
Swing over cross slide (mm)
223
Spindle bore (mm)
52 (MT6)
Max tool (mm)
22
Tailstock barrel taper
MT3
Chuck attachment
Cam lock D1-5
Tailstock barrel travel (mm)
130
Cross slide travel Y (mm)
95
Cross slide travel X (mm)
160
Feeding speed Y (mm/r)
0.052-1.392
Feeding speed X (mm/r)
0.014 - 0.380
Range of threads (metric)
0.4 - 7
Range of threads (inches)
4 - 56 T.P.I
Width (mm)
814
Length (mm)
1925
Height (mm)
1670
Weight (kg)
510
Warranty
1 year
