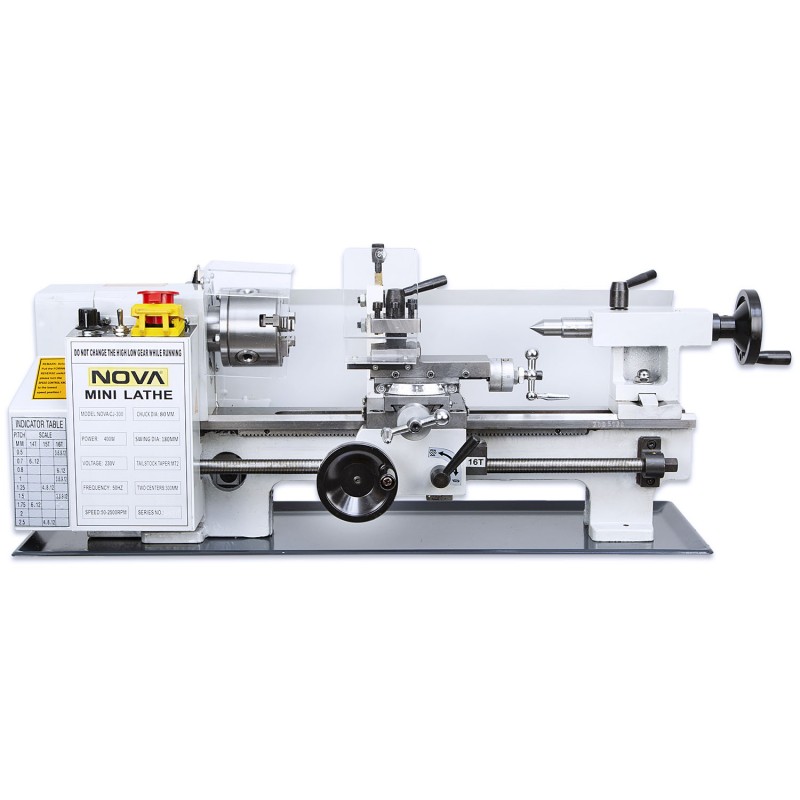

NOVA CJ-300 Mini Metal Lathe

In stock

A mini lathe with 300 mm between the centers. With this lathe you will make precise turnings. Accuracy is 0.01 mm or better. The motor 400 W/230 V is quiet and with stepless speed control (100–2500 rpm).

SORME300B
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
1,090.00 € vat 24 %
879,03 €
tax excl.
notifications_active Subscribe price drop
Quantity
In stock

Description

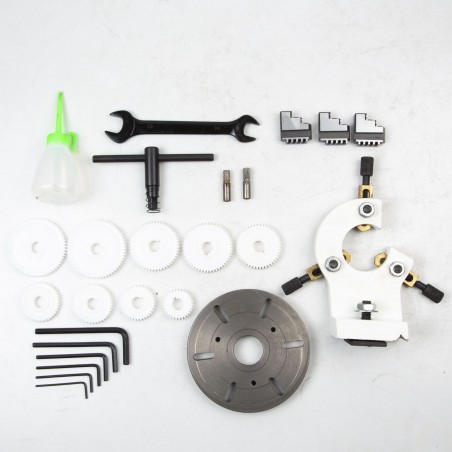

A mini lathe with 300 mm between the centers. With this lathe you will make precise turnings. Accuracy is 0.01 mm or better. The motor 400 W/230 V is quiet and with stepless speed control (50–2500 rpm). The distance, 300 mm, between the working centers and a powerful motor makes it possible for large machining. The frame is strong and vibration-free. An excellent lathe, for example, for those how are building scale models, precision mechanics, car and motorcycle enthusiasts etc. Also great for larger turnings. Comes with plexiglass on the chuck and blades, three jaw chuck (80 mm), dead center, and gear wheel set for threading.







Data sheet

Voltage (V)
230
Rated Power (W)
400
Rotating speed (rpm)
100-2500
Distance between centers (mm)
300
Swing over bed (mm)
180
Spindle bore (mm)
20 (chuck 16mm)
Max tool (mm)
10
Tailstock barrel taper
MT2
Cross slide travel Y (mm)
35
Cross slide travel X (mm)
65
Feeding speed Y (mm/r)
0,1 - 0,20
Range of threads (metric)
0,5-2,5
Width (mm)
820
Length (mm)
310
Height (mm)
300
Weight (kg)
38
Warranty
1 year
