NOVA 1440K Metal Lathe

In stock

NOVA 1440K has an powerful 3,3/2,2 kW motor. 1000 mm between centers.

NOVA 1440K Metal Lathe
search
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
  • NOVA 1440K Metal Lathe
SORME1440K


Always affordable prices



Fast delivery



Reliable warranty


NOVA
€16,099.00 vat 25.5 %
12 827,89 €
tax excl.
Quantity
In stock

Description

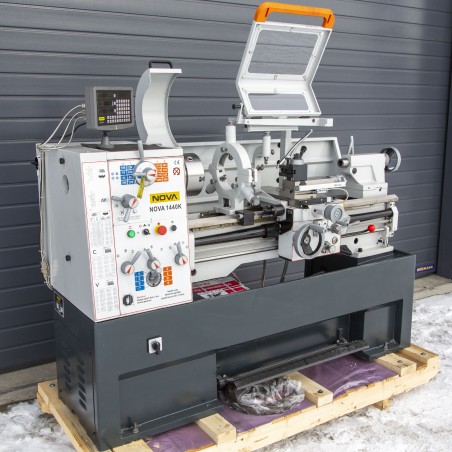

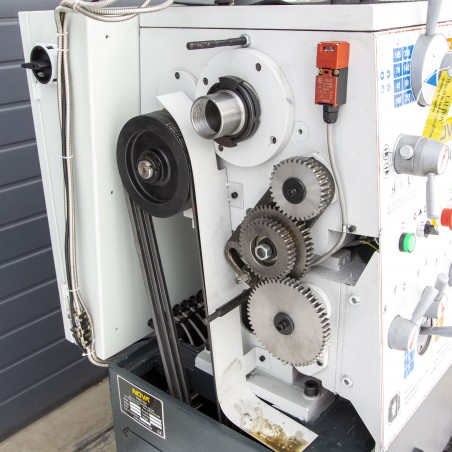

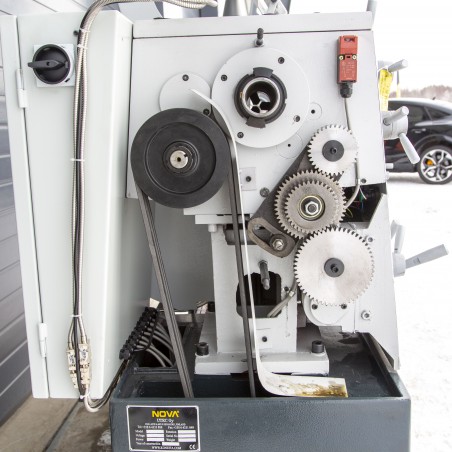

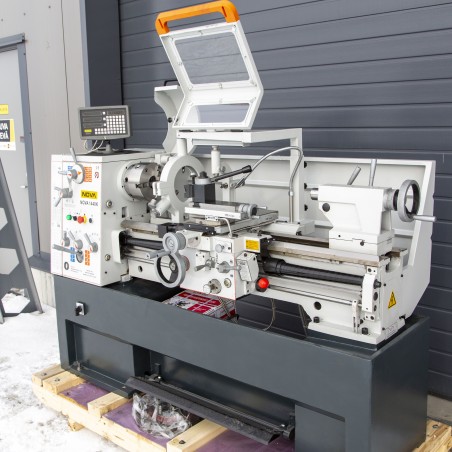

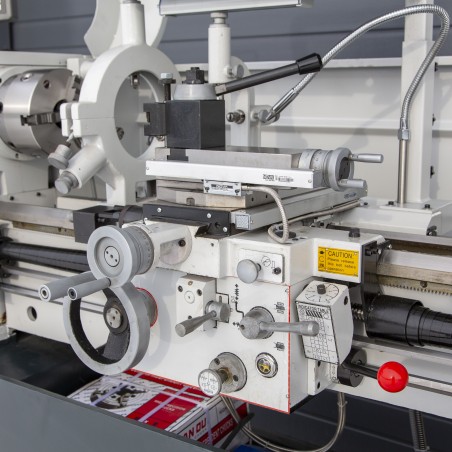

NOVA 1440K has an effective 3,3/2,2 kW motor. 1000 mm between centers. Maximum work piece diameter is 410 mm, but with a removable slide piece the work piece’s maximum diameter can be up to 580 mm. Spindle hole diam. 52 mm. The lathe is equipped with a foot brake. The bench is uniform cast-iron and vibration-free (width 250 mm). Also featuring induction-hardened and grinded bed ways. High-quality gear mechanism (hardened and grinded).

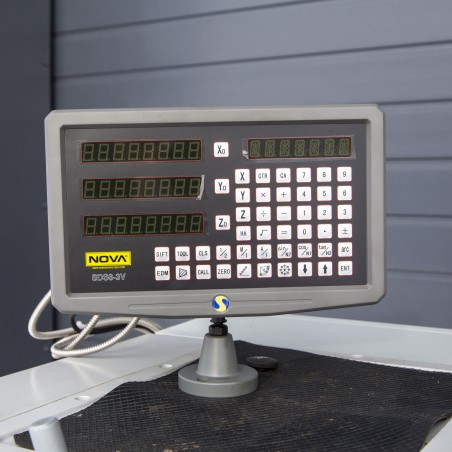

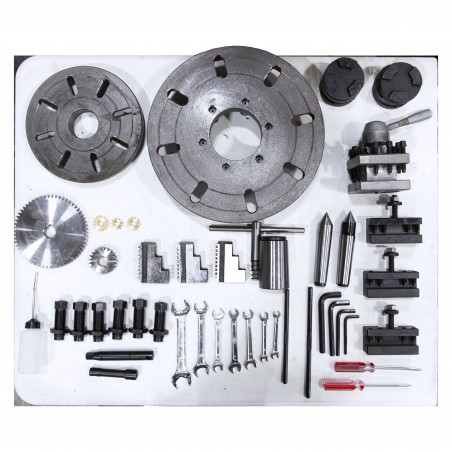

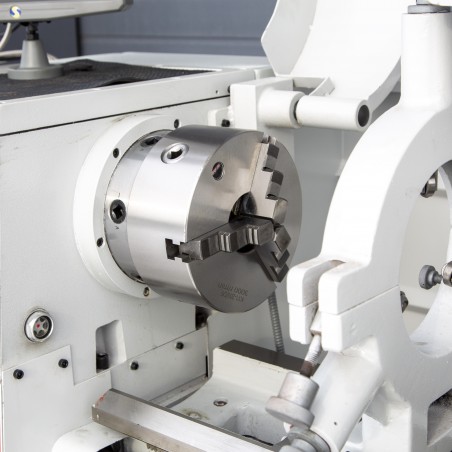

Includes: Oil pan, back panel, stand, LCD digital display, 3-jaw chuck (200 mm), 4-jaw chuck (250 mm), turning support, 1 pcs. dead centers, shrinking sleeve MT6-MT4, face plate piece 350 mm, coolant pump, led working light, wrenches, tool box.

Data sheet

Voltage (V)
380
Rated Power (W)
3300/2200
Rotating speed (rpm)
45-1800 (16 pcs)

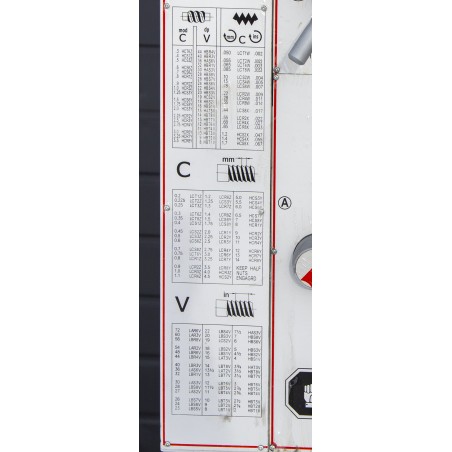

Thread cutting (mm)
0.2-14 (42pcs)
Distance between centers (mm)
1000
Swing over bed (mm)
410
Swing over gap (mm)
580
Swing over cross slide (mm)
255
Spindle bore (mm)
52
Max tool (mm)
20
Tailstock barrel taper
MT4
Tailstock barrel travel (mm)
120
Cross slide travel Y (mm)
140
Cross slide travel X (mm)
210
Feeding speed Y (mm/r)
0.05-1.7 (17 pcs)
Feeding speed X (mm/r)
0.025-0.85 (17 pcs)
Range of threads (inches)
2-72 (45 pcs)
Range of threads (D.P.)
8-44 (21pcs)
Range of threads (Module)
0.3-3.5 (18pcs)
Spindle nose
D1-6 Camlock (MK6)
Width of bed (mm)
250
3 jaw chuck
K11-200/D6
4 jaw chuck
K72-250/D6
Faceplate
350mm / D6
Width (mm)
1940
Length (mm)
850
Height (mm)
1320
Weight (kg)
1255
Warranty
1 year
