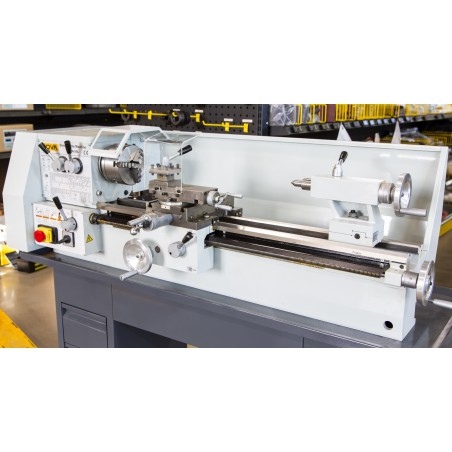

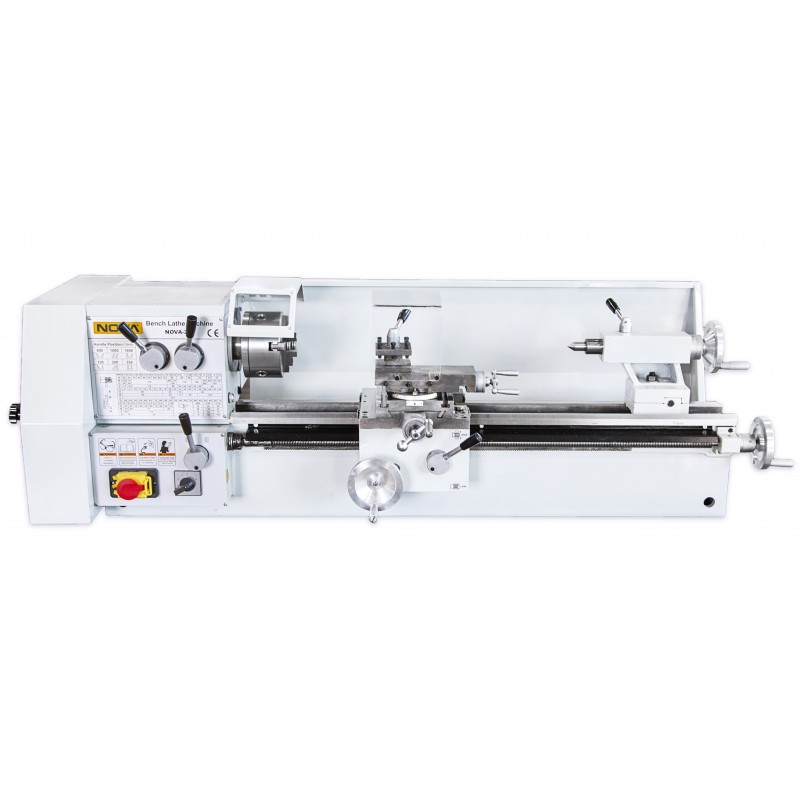

NOVA 25L 230V Metal Lathe
NOVA 25L is a reliable mini lathe suitable for small workshops and enthusiasts. Equipped with a 230V motor.
Description
Nova 25L (230V version) is sold in over 100 countries! Reliable, high-quality mini lathe that is suitable for small workshops, repair shops, and of course metal work enthusiasts. The model gives high-quality workmanship and is durable and easy to use.
Includes: 3 jaw chuck (125 mm), 2 pcs. live centers (fixed), gear wheel set for threading, and wrench keys.
The stand is optional.
Data sheet
Voltage (V)
230/380
Rated Power (W)
750
Rotating speed (rpm)
115-1620 (6 speed)
Distance between centers (mm)
700
Swing over bed (mm)
250
Spindle bore (mm)
27 (MT4)
Max tool (mm)
12
Tailstock barrel taper
MT2
Tailstock barrel travel (mm)
35
Cross slide travel X (mm)
115
Feeding speed Y (mm/r)
0,05-0,1
Range of threads (metric)
0,2-3,5 (20pcs)
Range of threads (inches)
8-56 (20pcs)
Weight (kg)
150
Warranty
1 year
