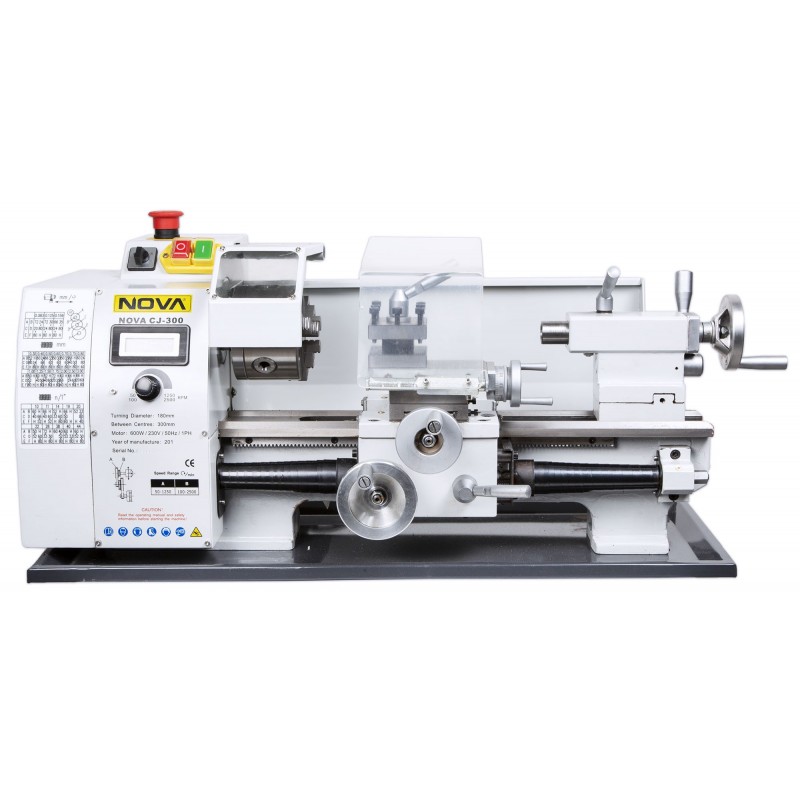

NOVA CJ-300A Mini Lathe

A powerful 600 W motor with stepless speed control facilitates turning of different materials.

NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
  • NOVA CJ-300 Mini Lathe
SORME300
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
1,590.00 € vat 24 %
1 282,26 €
tax excl.
Quantity
In stock

Description

A powerful 600 W motor with stepless speed control facilitates turning of different materials. Sleeves, pins, threading and drilling goes fast with this one. An easy-to-handle model even for the beginner. Digital display shows the speed. Space between the centers are 300 mm, and maximum diameter across the bed are 180 mm. 100 mm chuck. Hardened and grinded bed ways.

The standard equipment includes:

3-jaw chuck (100 mm), holders for 4 pcs. turning tools, 2 pcs. dead centers, replacement gears, spindle guards, lathe guards, chip guards, oil pan and basic tools.

Data sheet

Voltage (V)
230
Rated Power (W)
600
Rotating speed (rpm)
50-2500
Spindle
MT3
Distance between centers (mm)
300
Swing over bed (mm)
180
Swing over cross slide (mm)
110
Spindle bore (mm)
22
Max tool (mm)
10
Tailstock barrel taper
MT2
Tailstock barrel travel (mm)
65
Cross slide travel Y (mm)
55
Cross slide travel X (mm)
75
Feeding speed Y (mm/r)
0,05 / 0,1
Range of threads (metric)
0,5 - 3 mm (11)
Range of threads (inches)
10-44 TPI (8)
Width (mm)
820
Length (mm)
460
Height (mm)
350
Weight (kg)
45
