NOVA X16 milling machine

Out of stock (ask delivery time)

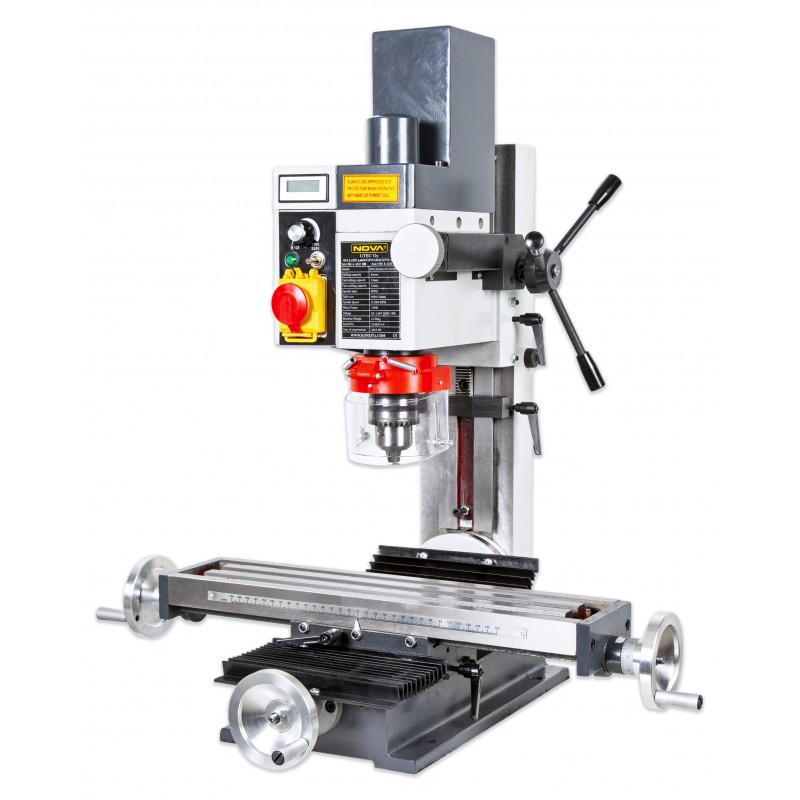

NOVA X16A is equipped with a 750W carbon brushless motor, MT3 cone and stable cast iron frame that guarantees vibration-free work. The tiltable milling head makes the job versatile. The model with metal wheels is a good and long-term solution for those who do a lot of milling work

  • Out of stock (ask delivery time)
NOVA X16A milling machine (metal gears)
search
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
  • NOVA X16A milling machine (metal gears)
JYRX16B


Always affordable prices



Fast delivery



Reliable warranty


NOVA
€1,399.00 vat 25.5 %
1 114,74 €
tax excl.
Quantity
Out of stock (ask delivery time)

Description

NOVA X16 with is equipped with a brushless 750W motor, MT3 spindle and vibration free cast frame. A tilting head and 220mm stroke makes working with this machine very versatile. Included in delivery: drill chuck 3-16 mm (B16), 4 pcs t-slot nuts and all needed tools for operation.

Data sheet

Voltage (V)
230
Rated Power (W)
750
Stroke length (mm)
180
Rotating speed (rpm)
0 - 2000
Drilling capacity (mm)
16
Milling capacity (mm)
13 / 25
Head tilt (°)
45 / 45
Spindle
MT3
Table T -slots (mm)
12
Spindle max distance to table (mm)
280
Main table size (mm)
460 x 120
Table movement (mm)
140 x 300
Width (mm)
680
Length (mm)
490
Height (mm)
770
Weight (kg)
62
Warranty
1 year
