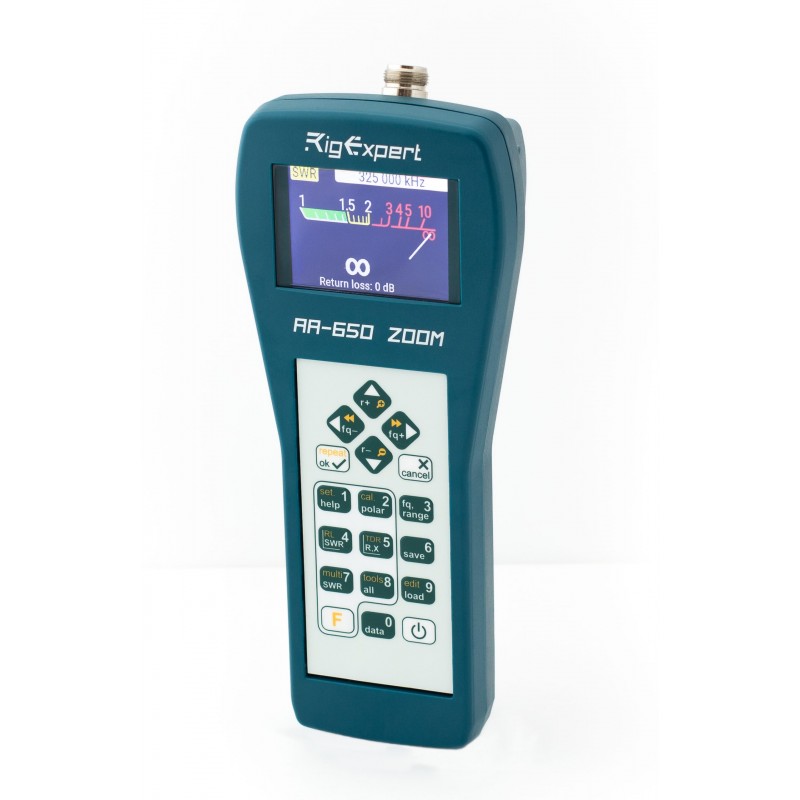

Rigexpert AA-650 ZOOM BT antennianalysaattori

Tilapäisesti loppu (kysy toimitusaikaa)

AA-650ZOOM BT analysaattori värinäytöllä.

  • Aina halvat hinnat Aina halvat hinnat
  • Nopea toimitus Nopea toimitus
  • Luotettava takuu Luotettava takuu
850,00 € alv 24 %
685,48 €
Tilapäisesti loppu (kysy toimitusaikaa)


Monipuolinen antennianalysaattori HF/VHF/UHF-taajusalueille. 1- 650 MHz

Frequency range: 0.1 to 650 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohms systems

SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes

R and X range: 0…2000, -2000…2000

Display modes: SWR, return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency, SWR chart (100 points). SWR chart at fixed HAM bands by IARU Regions (100 points), Cable tools (Velocity factor & Cable length measurer, Stub tuner, Cable loss chart, Cable impedance chart), TDR

Optional open-short-load calibration in SWR, R, X, or Smith/polar chart graph modes.

RF output:

–    Connector type: N

–    Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.

–    Output power: -10 dBm (at 50 Ohm load)


–    Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA

–    Max. 3 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used

–    When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources


– 320×240 color TFT display

– 6×3 keys on the water-proof keypad

– Multilingual menus and help screens (English – Spanish – Japanese)

– USB connection to a personal computer

– Bluetooth v. 4.2 (Single-mode, Class B)

Accessories inside the box: Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter

Dimensions: 23x10x5.5 cm (9x4x2”)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 650g (23 Oz)
