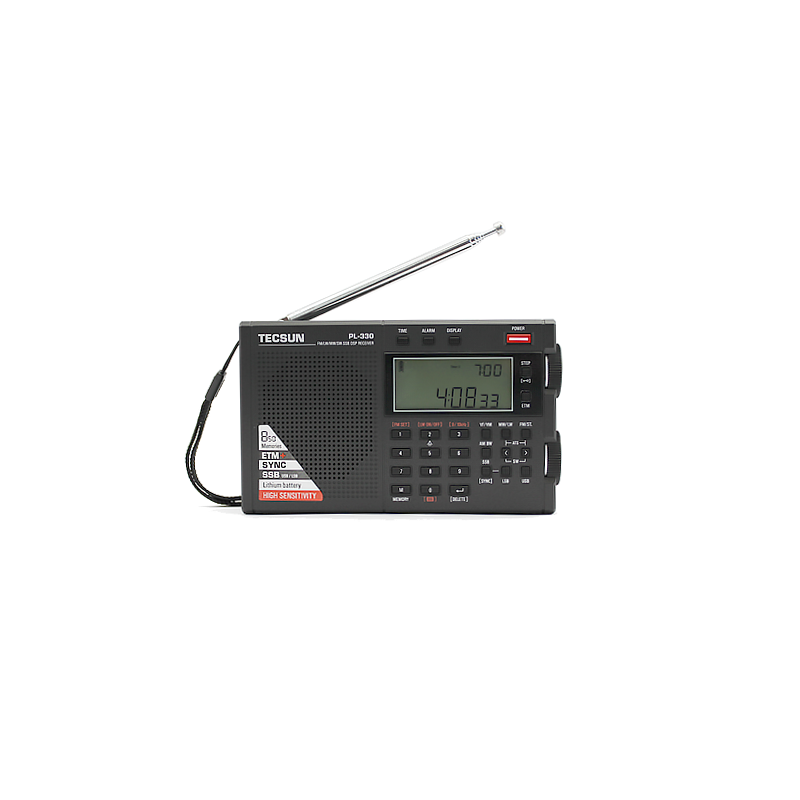

Tecsun PL-330 pienikokoinen lyhytaaltomatkaradio LW/MW/SW/FM

Pienikokoinen maailmanradio 1000 mAh akulla ja USB-latauskaapelilla.

ULA, pitkät, keskipitkät ja lyhyet aallot. AM, USB, LSB (CW) -vastaanottomodet

ULA-stereo kuulokkeilla.

Hintaan sisältyy myös korvakuulokkeet ja suojakotelo.

Koko vain 139 x 85 x 26 mm.

Pienikokoinen ja monipuolinen maailmanradio! Myös ULA-alue.

Frequency Range & Tuning Step:

- LW: 153-513kHz (9kHz step, fine-tune step 1kHz)

- MW:

* 520-1710kHz [10kHz step, 1kHz fine-tuning step (for America)]

* 522-1620kHz [9kHz step, 1kHz fine-tuning step (for Asia, Africa, Europe and Oceania)]

- SW1: 1711-29999kHz (5kHz step, 1kHz fine-tuning step)

Attention: When the above band is received in SSB mode, step 1kHz, fine-tune step 10Hz

- FM:

* 64-108MHz: Applicable to Russia, Caucasus and part of the Caspian Sea and Black Sea regions

* 76-108MHz: applicable to Japan

* 87-108MHz: applicable to China and some European countries

* 88-108MHz: Applicable to some countries such as Europe and Australia

Attention: The frequency step of FM is 100kHz, and the fine-tune step is 10kHz

Noise limit sensitivity:

- Long wave (S/N=26dB): <10mV/m

- Medium wave (S/N=26dB): <1mV/m

- Shortwave (S/N=26dB): <20μV

- Frequency modulation (S/N=30dB): <3μV

Selectivity:

- Long wave: >60dB

- Medium wave: >60dB

- Shortwave: >60dB

- Frequency modulation: >60dB

Synchronous detection frequency lock range: ±1kHz

Intermediate frequency (DSP): amplitude modulation 45kHz; frequency modulation 128KHz

FM stereo separation: ≥35dB

Maximum output power: about 200mW

Quiescent current:

- Long wave/medium wave/frequency modulation: <25mA

- Shortwave: <45mA

Shutdown current: <90μA

Speaker: 8Ω, 0.25W

Stereo headphone impedance: 32-150Ω

Power supply:

- 3.7V (1 BL-5C lithium battery)

- External DC power supply Micro USB 5V current ≥500mA

Charger/power adapter: USB DC 5V current ≥500mA (purchase separately)

Stored frequency memories:

- Long wave: 100

- Medium Wave: 150

- Shortwave: 300

- FM: 100

Size: 139×85×26(mm)

Weight: about 210g (without lithium battery)
