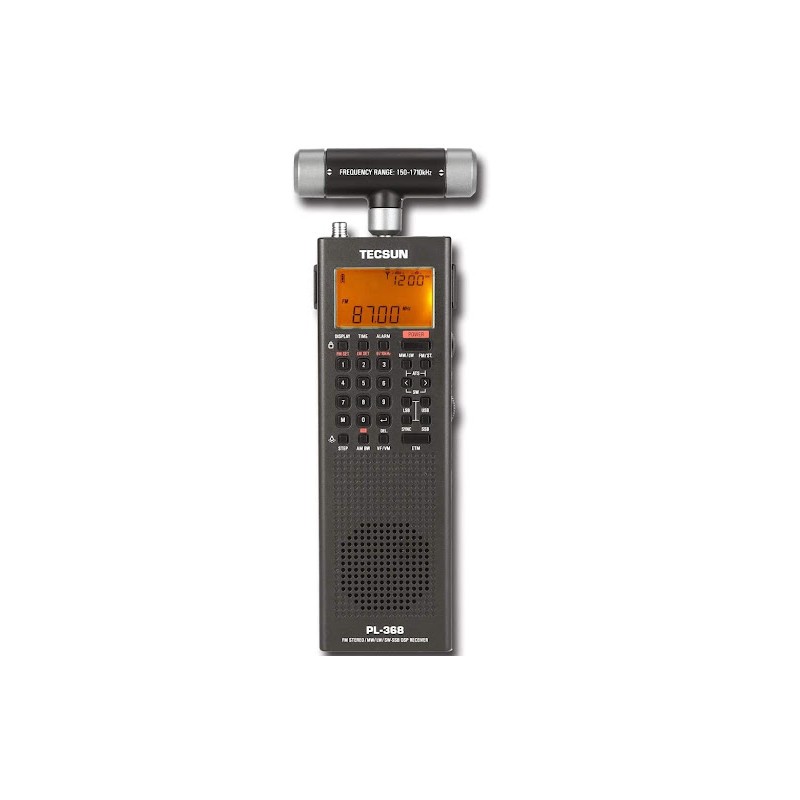

Tecsun PL-368 KEYPAD pienikokoinen vastaanotin

Pienikokoinen vastaanotin laajalla taajuusalueella. AM- ja USB/LSB/CW-vastaanotto lyhytaaltoalueella  1,7 - 30 MHz

AM-vastaanotto 150 - 1620 kHz, keskiaaltoalueella tehokas käännettävä suunta-antenni. ULA-stereo 88-108 MHz.

Kätevä vastaanotin myös häiriöiden paikantamiseen. Toimituspaketissa mukana akku, USB-latauskaapeli, kuulokkeet ja

suojakotelo.

The main updates of the Tecsun PL-368 compared to the Tecsun PL-365 are:

• New updated keypad with numeric keys for direct frequency input
• Synchronous detection function (SYNC)
• Updated Enhanced Tuning Mode (ETM) function, ETM+
• Rechargeable BL-5C Li-ion battery pack including USB-B-type charging cable (5V USB main charger not included)

  Other features:
• 9/10 kHz steps
• Auto scan function
• Auto Tuning Storage (ATS)
• 850 memory channels
• Alarm clock
• Sleep timer
• Snooze function
• Keylock
• Temperature in Celsius or Fahrenheit

  Specifications:
• Frequency range:
  - LW: 153-513 kHz
  - MW: 520-1710 kHz / 522-1620 kHz
  - SW: 1711-29999 kHz
  - FM: 64-108 / 76-108 / 87-108 / 88-108 MHz


• Frequency tuning steps LW:
  - AM broadcast: 9 kHz / 1 kHz
  - Single sideband: 9 kHz / 1 kHz / 10 Hz
  - Synchronous detection: 9 kHz / 1 kHz / 100 Hz
• Frequency tuning steps MW 520-1710 kHz:
  - AM broadcast: 10 kHz / 1 kHz
  - Single sideband: 10 kHz / 1 kHz / 10 Hz
  - Synchronous detection: 10 kHz / 1 kHz / 100 Hz
• Frequency tuning steps MW 522-1620 kHz:
  - AM broadcast: 9 kHz / 1 kHz
  - Single sideband: 9 kHz / 1 kHz / 10 Hz
  - Synchronous detection: 19 kHz / 1 kHz / 100 Hz
• Frequency tuning steps SW:
  - AM broadcast: 5 kHz / 1 kHz
  - Single sideband: 5 kHz / 1 kHz / 10 Hz
  - Synchronous detection: 5 kHz / 1 kHz / 100 Hz
• Frequency tuning steps FM: 100 kHz / 10 kHz


• Station memories (excl. ETM+):
  - LW: 100
  - MW: 150
  - SW: 300
  - FM: 100
  - SSB: 100
  - SYNC: 100
• Noise limit sensitivity:
  - LW (S/N = 26dB): <10mV/m
  - MW (S/N = 26dB): <1mV/m
  - SW (S/N = 26dB): <20uV
  - FM (S/N = 30dB): <3uV
• Selectivity:
  - LW: >60dB
  - MW: >60dB
  - SW: >60dB
  - FM: >60dB
• Sync Detection Lock Range: +/- 1 kHz
• IF Frequency (DSP): AM 45 kHz; FM 128 kHz
• FM Stereo crosstalk (headphone output): 35dB
• Speaker: 16 Ohm, 0.5W
• Stereo headphone impedance: 32 Ohm
• Maximum output power: 350mW
• Quiescent Current:
  - <25mA (FM/MW/LW)
  - <45mA (SW)
• Stand-by current: <90uA
• Power supply: 3.7V BL-5C Li-ion battery or external DC 5V
• Charging / external power: DC 5V / 500mA
• Measurements: 162x53x26 (with antenna contracted)
• Weight: 130 gram

  Package includes:
• 1x Tecsun PL-368 radio black
• 1x High sensitivity AM antenna
• 1x Stereo earbuds
• 1x BL-5C Li-ion battery
• 1x USB-B-type charging cable, (5V USB main charger not included)
• 1x Soft cotton carry bag
• 1x English user manual
