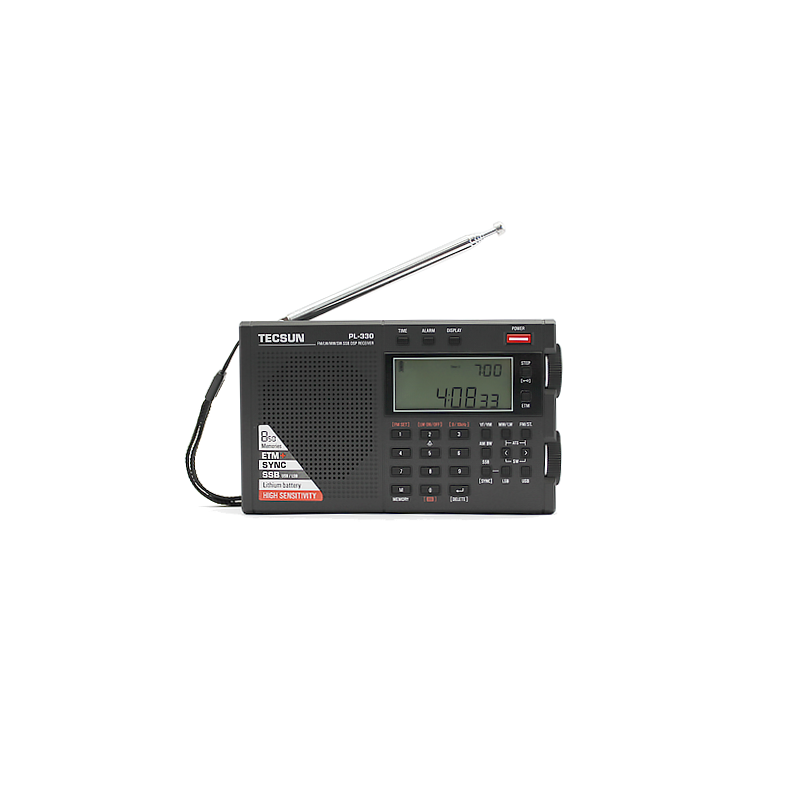

Tecsun PL-330 pienikokoinen lyhytaaltomatkaradio LW/MW/SW/FM

Pienikokoinen maailmanradio 1000 mAh akulla ja USB-latauskaapelilla.

ULA, pitkät, keskipitkät ja lyhyet aallot. AM, USB, LSB (CW) -vastaanottomodet

ULA-stereo kuulokkeilla.

Hintaan sisältyy myös korvakuulokkeet ja suojakotelo.

Koko vain 139 x 85 x 26 mm.

Frequency Range & Tuning Step:
- LW: 153-513kHz (9kHz step, fine-tune step 1kHz)
- MW:
* 520-1710kHz [10kHz step, 1kHz fine-tuning step (for America)]
* 522-1620kHz [9kHz step, 1kHz fine-tuning step (for Asia, Africa, Europe and Oceania)]
- SW1: 1711-29999kHz (5kHz step, 1kHz fine-tuning step)
Attention: When the above band is received in SSB mode, step 1kHz, fine-tune step 10Hz
- FM:
* 64-108MHz: Applicable to Russia, Caucasus and part of the Caspian Sea and Black Sea regions
* 76-108MHz: applicable to Japan
* 87-108MHz: applicable to China and some European countries
* 88-108MHz: Applicable to some countries such as Europe and Australia
Attention: The frequency step of FM is 100kHz, and the fine-tune step is 10kHz
Noise limit sensitivity:
- Long wave (S/N=26dB): <10mV/m
- Medium wave (S/N=26dB): <1mV/m
- Shortwave (S/N=26dB): <20μV
- Frequency modulation (S/N=30dB): <3μV
Selectivity:
- Long wave: >60dB
- Medium wave: >60dB
- Shortwave: >60dB
- Frequency modulation: >60dB
Synchronous detection frequency lock range: ±1kHz
Intermediate frequency (DSP): amplitude modulation 45kHz; frequency modulation 128KHz
FM stereo separation: ≥35dB
Maximum output power: about 200mW
Quiescent current:
- Long wave/medium wave/frequency modulation: <25mA
- Shortwave: <45mA
Shutdown current: <90μA
Speaker: 8Ω, 0.25W
Stereo headphone impedance: 32-150Ω
Power supply:
- 3.7V (1 BL-5C lithium battery)
- External DC power supply Micro USB 5V current ≥500mA
Charger/power adapter: USB DC 5V current ≥500mA (purchase separately)
Stored frequency memories:
- Long wave: 100
- Medium Wave: 150
- Shortwave: 300
- FM: 100
Size: 139×85×26(mm)
Weight: about 210g (without lithium battery)
