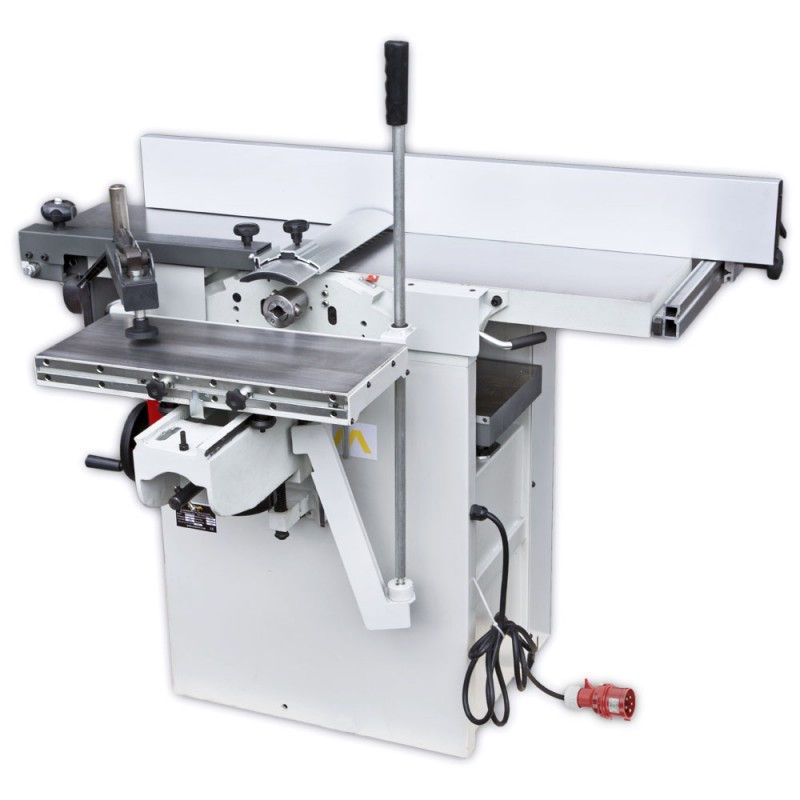

NOVA PT-260 Jointer/Planer Combination Machine

Out of stock (ask delivery time)

Nova PT-260 is a qualitative jointer/planer for small spaces.

  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
  • Nova PT-260 oiko-tasohöylä
HOYPT260
  • Always affordable prices Always affordable prices
  • Fast delivery Fast delivery
  • Reliable warranty Reliable warranty

NOVA
1,829.00 € vat 24 %
1 475,00 €
tax excl.
Quantity
Out of stock (ask delivery time)

Description

Nova PT-260 is a qualitative jointer/planer for small spaces. Vibration-free and stable machine. Even though the PT-260 is a so-called small planer, it is still in class with the large machines in terms of quality and planer capacity. 260 mm planing width. The efficient 380 V motor of 3 kW guarantees that the power does not end even at high feeding. Strongly cast table. Quick and easy change from jointer to planer. A long-hole drilling unit (optional) can be added. A 100 mm standard size connection for dust collection, which can be used for both jointing and planing. Qualitative support holder, which can be tilted 45 degrees. Quick and easy to adjust to the desired angle.

NOTE! The Long-hole drilling unit is optional equipment.

Data sheet

Voltage (V)
380
Rated Power (W)
3000
Motor (rpm)
2900
Knives
3
Max cutting width (mm)
260 / 258
Cutterhead diameter (mm)
75
Feeding speed (m/min)
5
Max height (mm)
190
Max cutting (mm)
3 / 2
Guide tilt (°)
45-90
Guide (mm)
1125 x 130
Main table size (mm)
1100 x 265 / 600 x 258
Width (mm)
525
Length (mm)
1155
Height (mm)
955
Weight (kg)
162
Warranty
1 year
