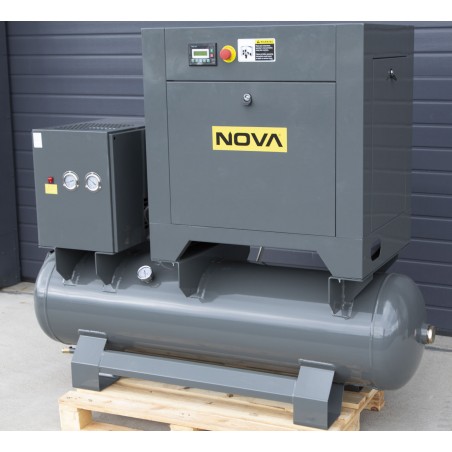

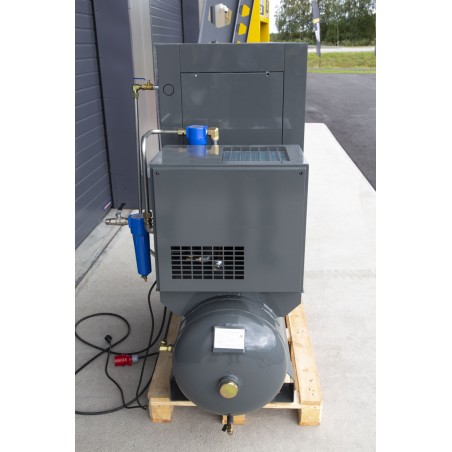

NOVA SC-10C Screw compressor
Out of stock (ask delivery time)
A robust screw compressor for professional use. Powerful 7.5 kw motor with 10 bar F.A.D. 1000 l/min.
Description
A robust screw compressor for professional use. Powerful 7.5 kw motor with 10 bar F.A.D. 1000 l/min.

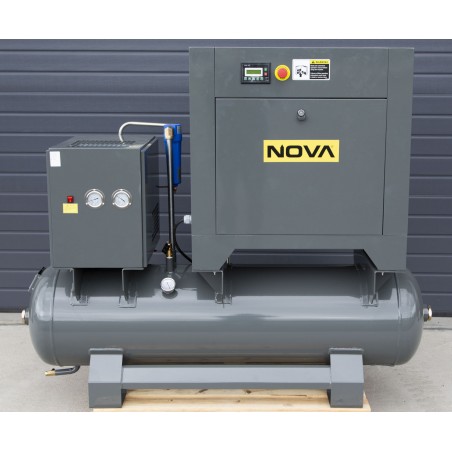

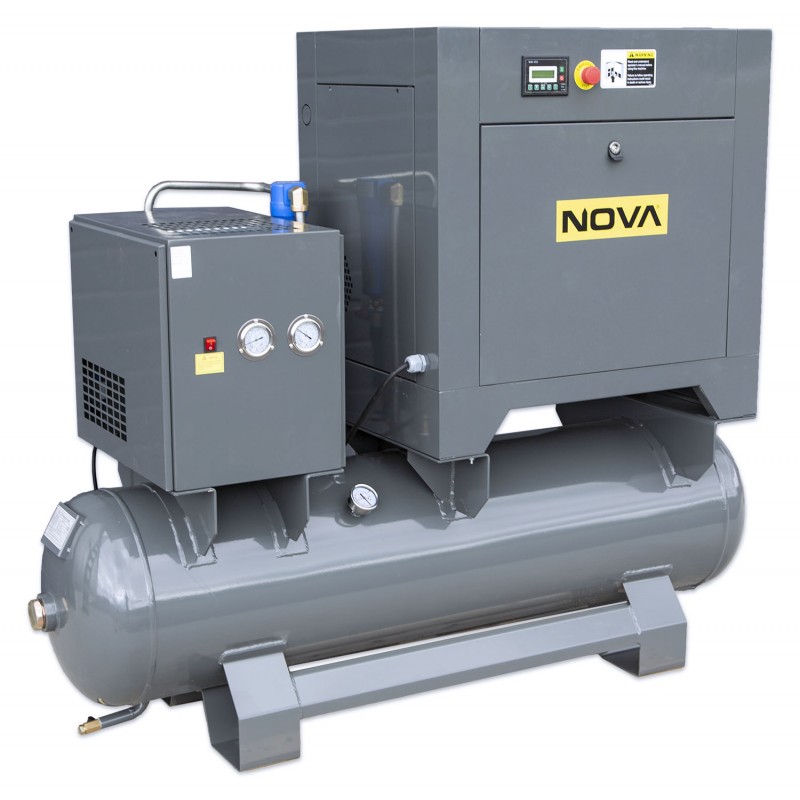

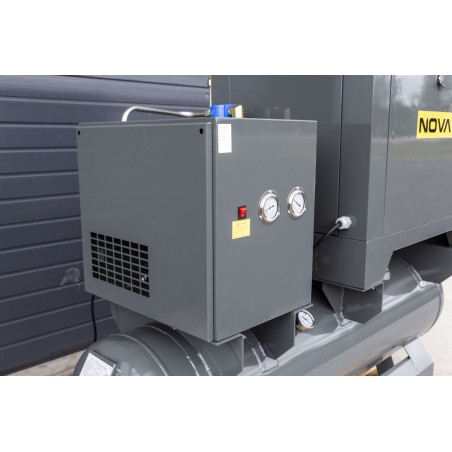

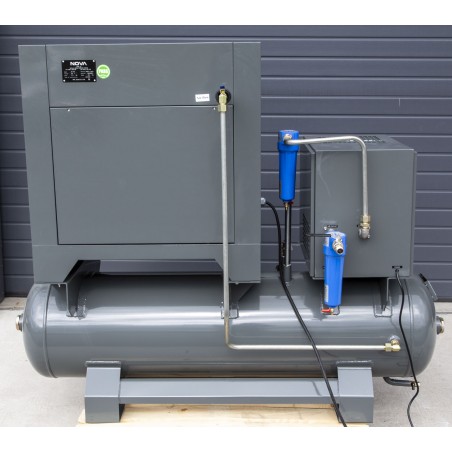

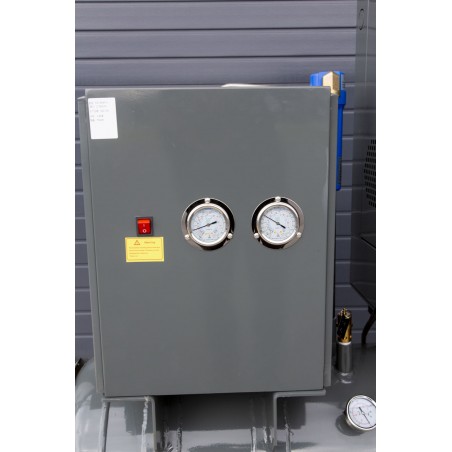

Complete screw compressor package with tank and dehumidifier.
Easy adjustment of maximum and charge pressure makes it easy to adjust the pressure output according to your pressure system and your needs.
A security feature detects error pairing of the phases, which prevents the machine from being damaged.

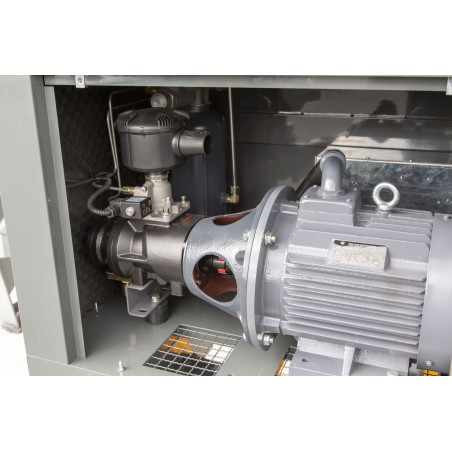

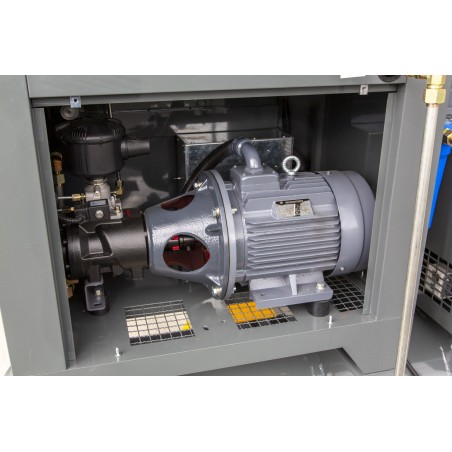

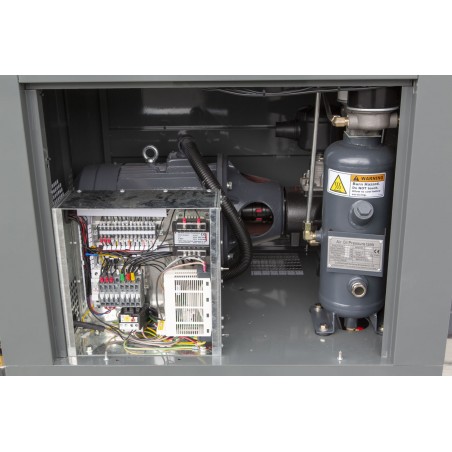

The cabinet opens quickly for maintenance checks and all components are clearly placed so that they can be serviced easily and time-saving.
Data sheet
- Voltage (V)
- 380
- Rated Power (W)
- 7500
- Tank capacity (l)
- 270
- Pressure flow (l/min)
- 7 bar 1300 l/min, 8 bar 1200 l/min, 10 bar 1000 l/min
- Fuse (A)
- 16
- Starting method
- Schneider Electric soft starter
- Drive
- Belt drive
- Air outlet method
- 3/4"
- Lubricant (l)
- 12
- Noise level dB(A)
- 65+2
- Width (mm)
- 1850
- Length (mm)
- 810
- Height (mm)
- 1530
- Weight (kg)
- 365
- Warranty
- 1 year
